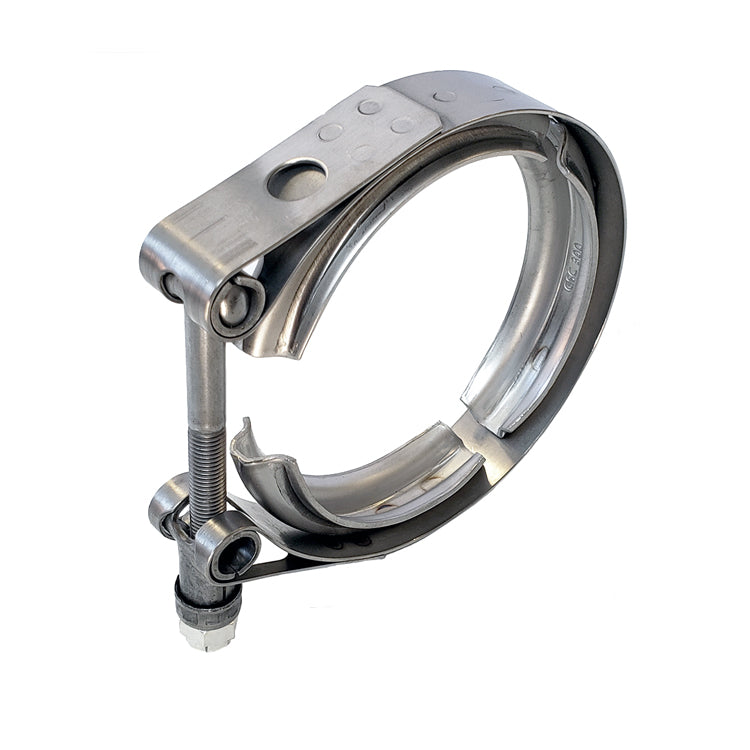

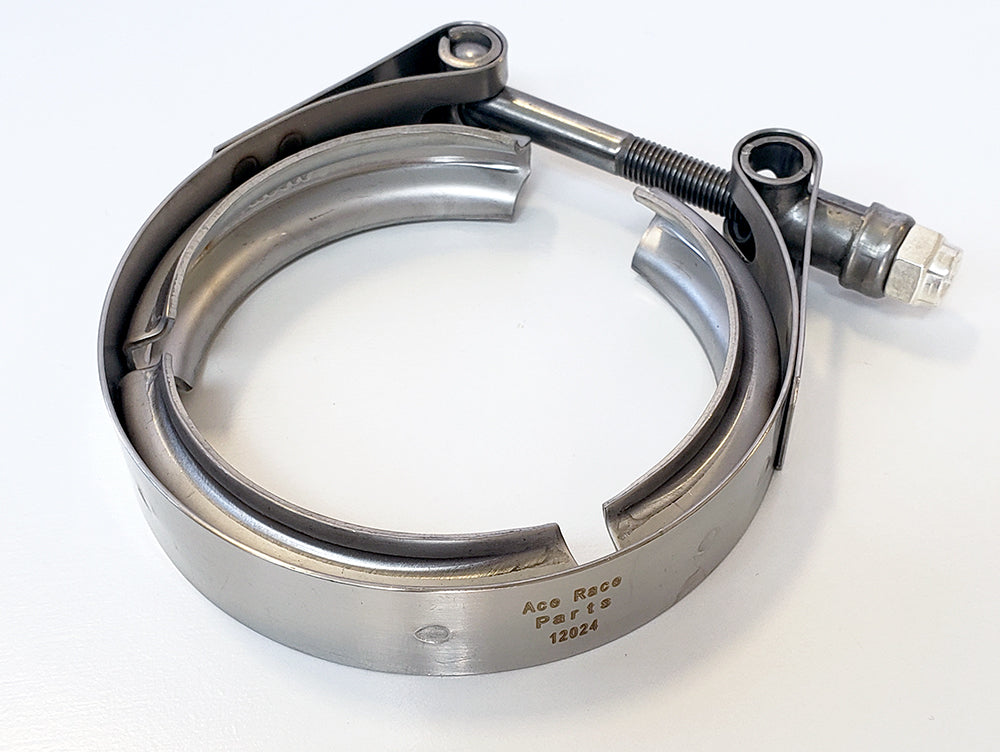

1.750" V-Band Clamp (for 2.450" OD Aluminum and Stainless Flanges) - 304 Stainless

Ace Race Parts 304 Stainless Steel V-Band Clamps for Aluminum and Stainless Flanges feature a "Standard" T-Bolt style clamping mechanism to ensure a tight, leak-free seal. These V-Band Clamps fit all Ace Race Parts brand Aluminum, Quick Release Stainless, & Titanium Flanges. These do not fit Mild Steel or Standard Stainless Flanges.

V-Band Clamp Sizing Information: Our V-Band Clamp sizing is in reference to the intended matching tube size diameter, not the clamping range of the clamp itself. This specific V-Band Clamp is intended to be used with 1.750" ID V-Band Flanges (matching tube size: 1.750" OD) and will accept V-Band Flanges with an overall OD of 2.450".

COMPATIBLE PRODUCTS:

• SKU 12052 - 1.750" "Male + O-Ring" V-Band Flange - 6061 Aluminum

• SKU 12062 - 1.750" "Female" V-Band Flange - 6061 Aluminum
• SKU 12002 - 1.750" V-Band Assembly - Aluminum

• SKU 22135 - 1.750" "Male" V-Band Flange (Quick Release) - 304 Stainless
• SKU 22151 - 1.750" "Female" V-Band Flange (Quick Release) - 304 Stainless

• SKU 22103 - 1.750" V-Band Assembly (Quick Release) - 304 Stainless

Compatibility Disclaimer: Due to flange dimension differences, "Standard" style and "Quick Release" style V-Band Clamps and Flanges are NOT cross-compatible. Ace Race Parts / K2 Fabrication is NOT responsible if incompatible V-Band components are ordered. We do not offer any compatibility guarantee with any other brand of V-Band components.
