Turbo Compressor Flange - Garrett GT42, GT45/GTX45, GT47/GTX47, GTX50, GT55/GTX55 - 6061 Aluminum
Turbo Compressor Flange - Garrett GT42, GT45/GTX45, GT47/GTX47, GTX50, GT55/GTX55 - 6061 Aluminum

Turbo Compressor Flange - Garrett GT42, GT45/GTX45, GT47/GTX47, GTX50, GT55/GTX55 - 6061 Aluminum

27175
Only 257 left!
TRUSTED BY THE INDUSTRY'S TOP FABRICATORS AND MANUFACTURERS!

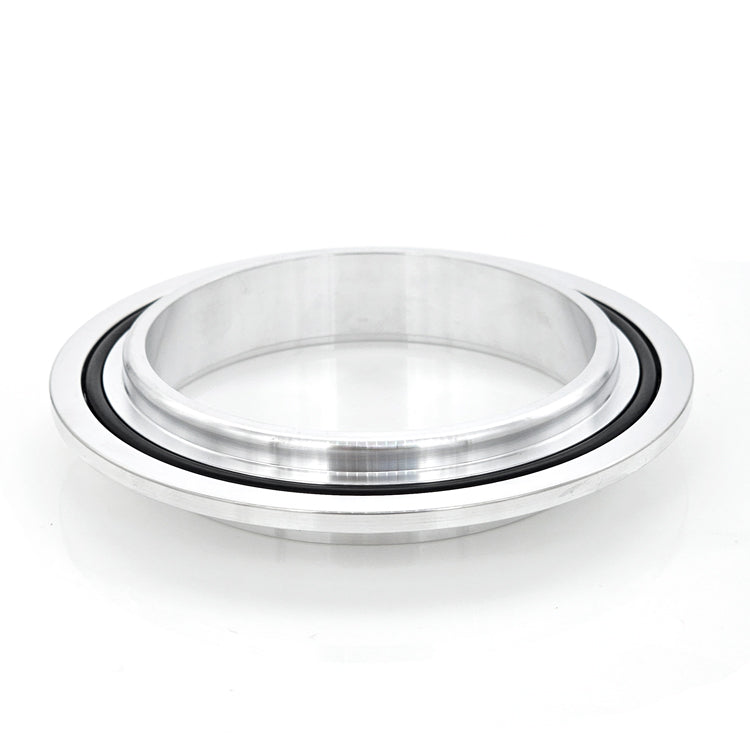

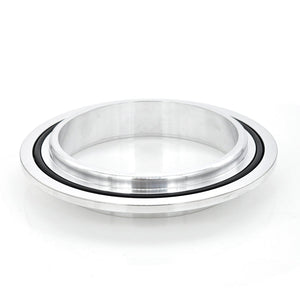

The Ace Race Parts brand of Turbo V-Band Compressor Flanges is precision CNC machined from solid 6061 Aluminum billet and offers durability in the most extreme conditions. Our version of this particular Turbo Compressor Flange is compatible with a variety of Garrett and BorgWarner brand turbochargers (please see the "Compatibility" list provided below). For dimensional details, please view the "Dimensions" table provided below.

FEATURES

  • Precision CNC Machined
  • 6061 Aluminum
  • For use with Garrett and BorgWarner brand Turbochargers

COMPATIBILITY

  • Compressor Outlet: Garrett GT42, GT45/GTX45, GT47/GTX47, GTX50, GT55/GTX55
  • Compressor Outlet: BorgWarner S400 SX-E, SX, SX3 & SX4 Series / S500 SX-E & SX Series

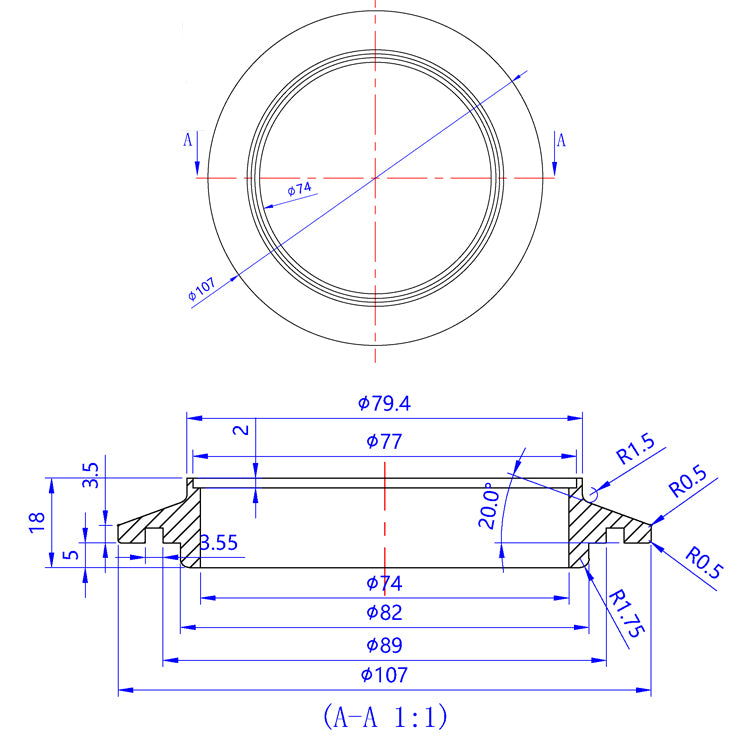

DIMENSIONS
  • Counterbore ID: 3.031" (77mm)
  • Flange ID: 2.9413" (74mm)
  • Overall Flange OD: 4.212" (107mm)
