- Bolt Pattern: 4.500" x 2.750"
- Threaded Holes: Yes, M10 x 1.5
- Flange Thickness: 0.500"

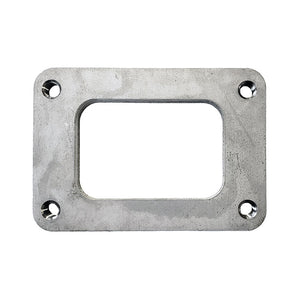

T6 Turbo Undivided Inlet Flange 304 Stainless (M10 x 1.5 Tapped Holes)
27105-2TRUSTED BY THE INDUSTRY'S TOP FABRICATORS AND MANUFACTURERS!
The Ace Race Parts brand of Turbo Inlet Flanges are precision machined from 1/2-inch thick 304 Stainless and will not warp or deform. Our Undivided T6 Turbo Inlet Flange features M10 x 1.5 threaded bolt holes and can handle the extremely high exhaust temperatures of a turbo manifold.
FEATURES
- 0.500" Thick, 304 Stainless Steel
- Will Not Warp or Deform!
- M10 x 1.5 Threaded Bolt Holes
COMPATIBLE WITH
- Generic T6 Turbine Inlets
- All Garrett GT47 / GTX47
- All GT50 / GTX50
- All GTX55
- All GT60
-
Note: May NOT be compatible with some Borg Warner T6 Turbos, some VS Racing T6 Turbos, or some Forced Induction T6 Turbos. Turbos that utilize the Borg Warner 4.44" x 2.75" bolt pattern are NOT compatible with this flange.
DIMENSIONS
DETAILS
- Flange/Gasket Type: Turbo; Inlet
- Material Type: 304 Stainless
- Compatible Gasket: SKU 27136
NOTE: Please review the provided product measurements. It is the customer's responsibility to verify that the bolt circle or bolt pattern of their application matches the dimensions provided for our products.
