- Bolt Pattern: 3.250" x 2.750"
- Threaded Holes: Yes, M10 x 1.5
- Flange Thickness: 0.500"

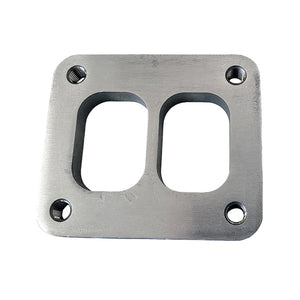

T4 Turbo Divided Inlet Flange Mild Steel (M10 x 1.5 Tapped Holes)
37104-1TRUSTED BY THE INDUSTRY'S TOP FABRICATORS AND MANUFACTURERS!
The Ace Race Parts brand of Turbo Inlet Flanges are precision machined from 1/2-inch thick 1018 Mild Steel and will not warp or deform. Our Divided T4 Turbo Inlet Flange features M10 x 1.5 threaded bolt holes and can handle the extremely high exhaust temperatures of a turbo manifold.
FEATURES
- 0.500" Thick, 1018 Mild Steel
- Will Not Warp or Deform!
- M10 x 1.5 Threaded Bolt Holes
- Divided Inlet for Twin Scroll Applications
COMPATIBLE WITH
- Generic T4 Divided Turbine Inlets
- Garrett GT3788
- GT4088R / GTX4088R
- GT4094R
- GT4202R
- GT4294R
- GT4508R / GTX4508
DIMENSIONS
DETAILS
- Flange/Gasket Type: Turbo; Inlet
- Material Type: 1018 Mild Steel
- Compatible Gasket: SKU 27112
NOTE: Please review the provided product measurements. It is the customer's responsibility to verify that the bolt circle or bolt pattern of their application matches the dimensions provided for our products.
