- Bolt Pattern: 3.375" x 1.750"
- Threaded Holes: Yes, M10 x 1.5
- Flange Thickness: 0.500"

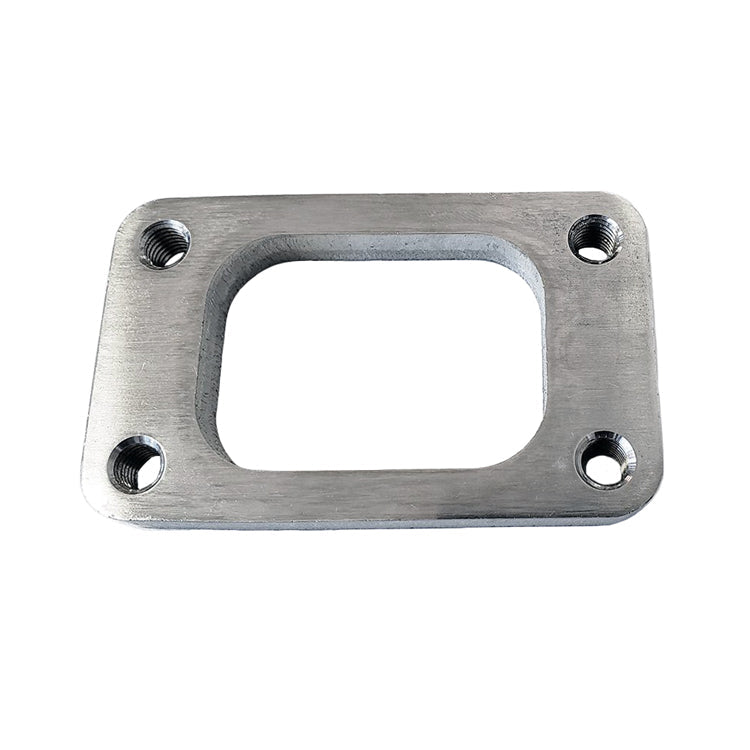

T3 Turbo Inlet Flange Mild Steel (M10 x 1.5 Tapped Holes)
37101-1TRUSTED BY THE INDUSTRY'S TOP FABRICATORS AND MANUFACTURERS!
The Ace Race Parts brand of Turbo Inlet Flanges are precision machined from 1/2-inch thick 1018 Mild Steel and will not warp or deform. Our T3 Turbo Inlet Flange features M10 x 1.5 threaded bolt holes and can handle the extremely high exhaust temperatures of a turbo manifold.
FEATURES
- 0.500" Thick, 1018 Mild Steel
- Will Not Warp or Deform!
- M10 x 1.5 Threaded Bolt Holes
This T3 Undivided Turbo Inlet Flange has a 3.375" x 1.750" bolt pattern and is compatible with the following applications: Generic T3 Undivided Turbine Inlets and Turbonetics T3 Undivided Turbine Inlets. Please be sure to verify the bolt pattern of your existing application before purchasing this T3 Undivided Turbine Inlet Flange.
DIMENSIONS
DETAILS
- Flange/Gasket Type: Turbo; Inlet
- Material Type: 1018 Mild Steel
- Compatible Gasket: SKU 27109
NOTE: Please review the provided product measurements. It is the customer's responsibility to verify that the bolt circle or bolt pattern of their application matches the dimensions provided for our products.
