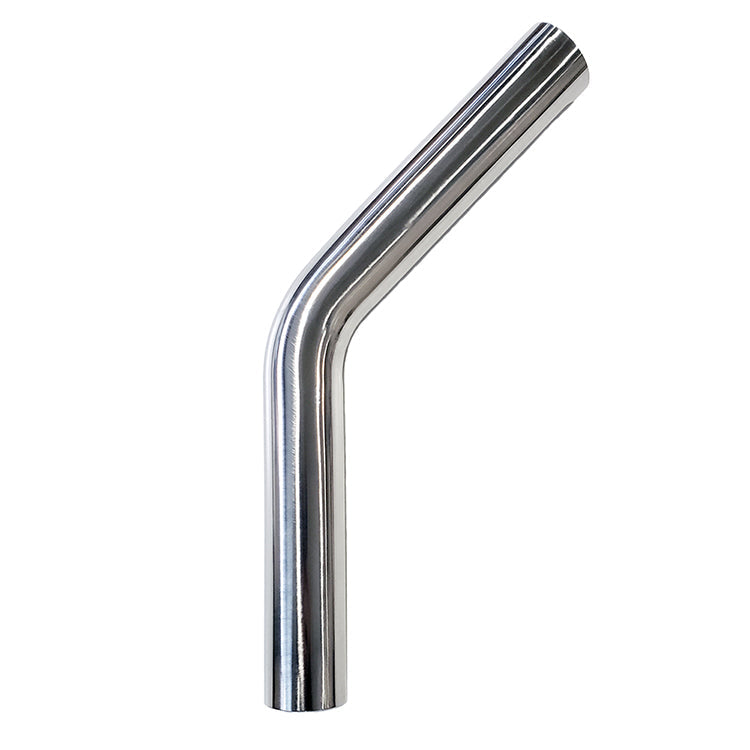

3.000" x 0.047" 45° Mandrel Bend CP2 Titanium - (4.500" CLR / 6.000" Legs)
3.000" x 0.047" 45° Mandrel Bend CP2 Titanium - (4.500" CLR / 6.000" Legs)

3.000" x 0.047" 45° Mandrel Bend CP2 Titanium - (4.500" CLR / 6.000" Legs)

71036
Only 0 left!
ULTRA LIGHTWEIGHT, THIN WALL CP2 TITANIUM 45° BEND

The Ace Race Parts brand of 45° CP2 Titanium Mandrel Bends is the preferred choice for fabricators and manufacturers when it comes to fabricating downpipes, dump tubes, exhaust systems, headers, teardrop exits, and other custom components. Our mandrel bends ensure a consistent, high-quality welding experience, with minimal need for surface preparation prior to welding.

FEATURES

  • Fabricate Downpipes, Dump Tubes, Headers, Teardrops, and more!
  • Precision Bent Grade 3 Titanium Tube
  • Ultra Lightweight, Thin Wall Material
  • Available in a Wide Range of Sizes
  • Virtually No Need for Surface Preparation Prior to Welding
DETAILS
  • Outside Diameter: 3.000"
  • Wall Thickness: 0.047" (1.2mm)
  • Inside Diameter: 2.906"
  • Bend Angle: 45°
  • Centerline Radius (CLR): 4.500"
  • Leg/Tangent Length: 6.000"
  • Finish: Polished OD
  • Material Type: CP2 Titanium
Dimensional Disclaimer: Due to the allowable tolerances of tube size material all dimensions are approximate only. We make no guarantees that the OD, ID, or Wall Thickness are exact dimensions.
Tube vs Pipe Guide
Titanium Material Guide

Don't forget your welding wire! Titanium Welding Wire Available in 0.039" (1mm) and 0.063" (1.6mm) Diameters.
