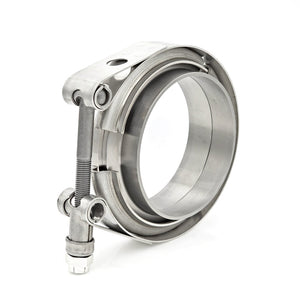

3.000" V-Band Assembly "Male/Female" CP2 Titanium

Our CP2 Titanium V-Band Assemblies are precision CNC machined and feature a set of CP2 Titanium "Male/Female" interlocking style V-Band Flanges and a 304 Stainless Steel V-Band Clamp. Titanium V-Band Assemblies are a durable type of clamping system that is suited for high performance automotive, diesel, marine and aerospace applications.

Our V-Band Flanges utilize an interlocking flange design that ensures a leak-free seal without the need for a gasket and features a counterbore on the weld side of the flange that allows the matching tube size material to slip into the flange. The counterbore is machined to a width of 0.065" and aligns with the inside diameter (ID) of matching tube size material — preventing any unnecessary reductions or restrictions in the flow of exhaust gases.

FEATURES:

• Precision CNC Machined CP2 Titanium V-Band Flanges

• Male/Female style Interlocking Flanges
• Slip-Thru style flanges that allow the tube to slip through the flanges
• 304 Stainless V-Band Clamp
• Compatible with our Quick Release V-Band Clamps
• Perfect for exhaust systems, turbo manifolds, and more!


V-BAND ASSEMBLY INCLUDES:

• (1) SKU 12024 - V-Band Clamp, 304 Stainless
• (1) SKU 72040 - "Male" Interlocking V-Band Flange, CP2 Titanium
• (1) SKU 72056 - "Female" Interlocking V-Band Flange, CP2 Titanium

Compatibility Disclaimer: Due to flange dimension differences, "Standard" style and "Quick Release" style V-Band Clamps and Flanges are NOT cross-compatible. Ace Race Parts / K2 Fabrication is NOT responsible if incompatible V-Band components are ordered. We do not offer any compatibility guarantee with any other brand of V-Band components.
