- V-Band Size: 4.000"
- Matching Tube Size: 3.500"
- Overall Flange OD: 4.750"
- Flange Apex Width: 0.137"
- Flange Base Width: 0.210"

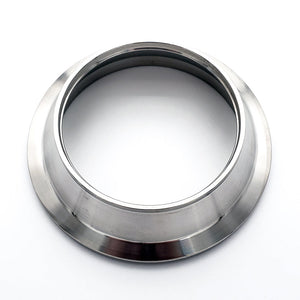

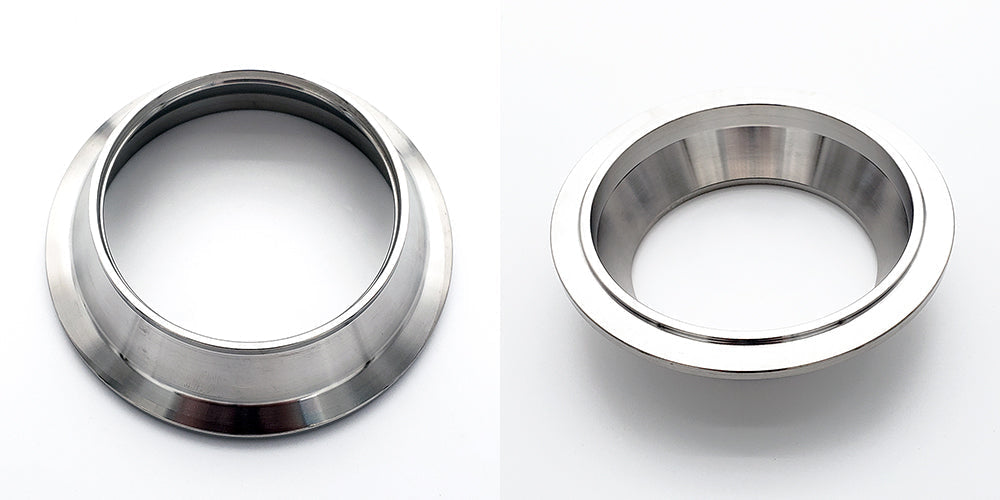

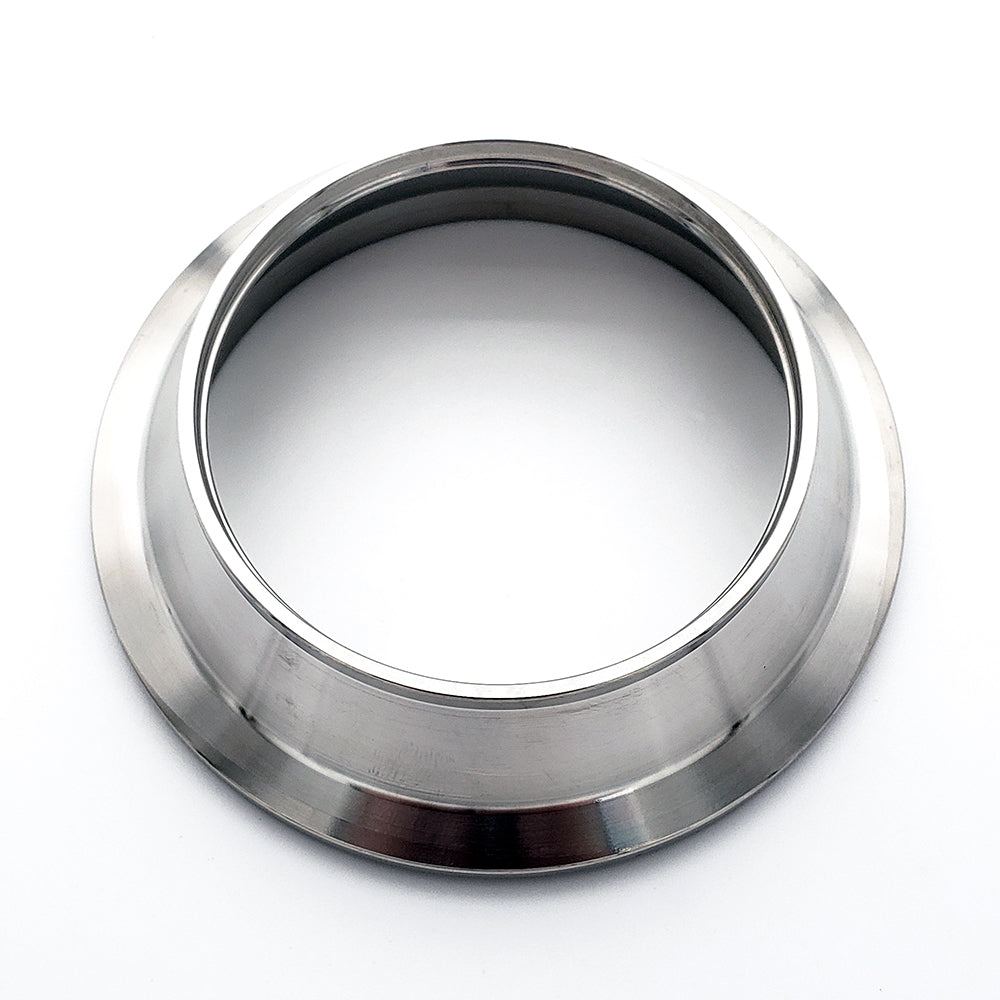

3.500" Reducing V-Band Flange "Male" 304 Stainless - Fits Quick Release Clamp
22142-1Our Aluminum V-Band Flanges are precision CNC machined from solid 6061 Aluminum billet and are offered in two configurations: "Male + O-Ring" and "Female". When combined with a compatible v-band clamp, our interlocking aluminum v-band flanges create an air-tight connection for a wide range of automotive applications.
Note: This V-Band Flange is not compatible with other 3.500" V-Band Flanges. This V-Band Flange is a reducing style V-Band Flange that is only meant to work with 4.000" V-Band Flanges (with a 4750" overall OD) to create a reducing V-Band Assembly.
COMPATIBLE PRODUCTS:
- SKU 22160 - 4.000" "Female" V-Band Flange (Quick Release) - 304 Stainless
- SKU 22128 - 4.000" V-Band Clamp (Quick Release) - 304 Stainless
- SKU 12027 - 4.000" V-Band Clamp (NOT Quick Release) - 304 Stainless
- SKU 12070 - 4.000" "Female" V-Band Flange - 6061 Aluminum
- SKU 72060 - 4.000" "Female" V-Band Flange - CP2 Titanium
DIMENSIONS:
Compatibility Disclaimer: Due to flange dimension differences, "Standard" style and "Quick Release" style V-Band Clamps and Flanges are NOT cross-compatible. Ace Race Parts / K2 Fabrication is NOT responsible if incompatible V-Band components are ordered. We do not offer any compatibility guarantee with any other brand of V-Band components.
