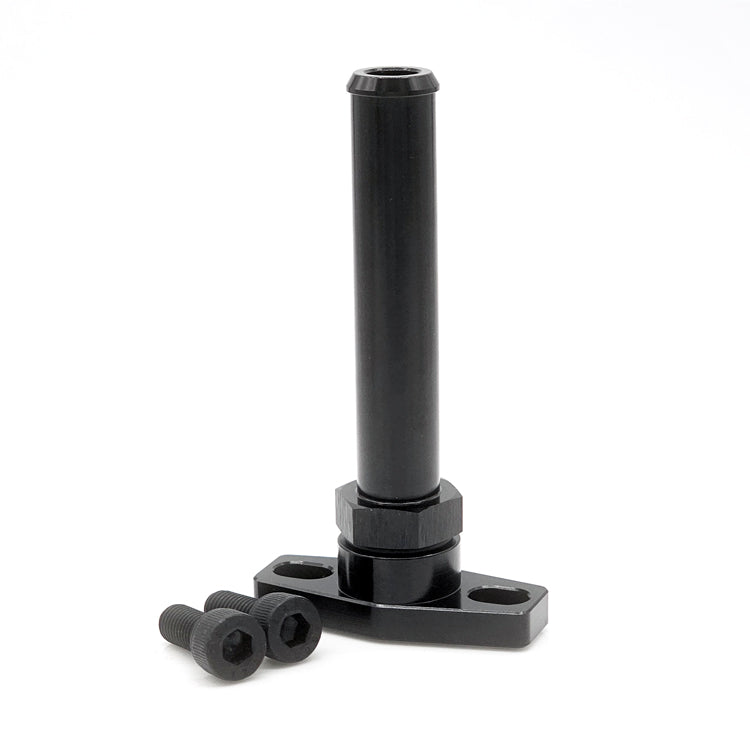

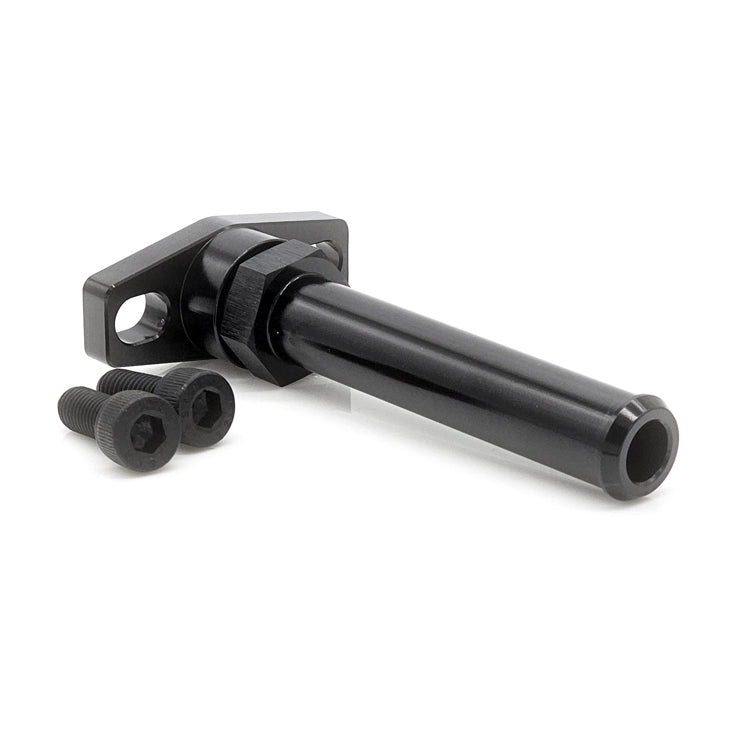

Oil Drain Flange 5/8" Male Barb Extension with O-Ring Style Seating Surface (2.000" Bolt Circle)
23715The Ace Race Parts brand of Oil Drain Flanges are offered in a wide range of configurations. This particular Oil Drain Flange features an integrated 5/8" Male Hose Barb Extension Outlet and an O-Ring Style Seating Surface to ensure a leak-free connection at all times. This particular oil drain flanges features a -8AN Female ORB Flange with a 5/8" Male Barb Extension Fitting, measuring 3.500" Long. Our oil drain flanges are precision CNC machined from solid 6061-T6 Aluminum billet and features a black hard anodized finish that will stand up to the harshest conditions.
FEATURES

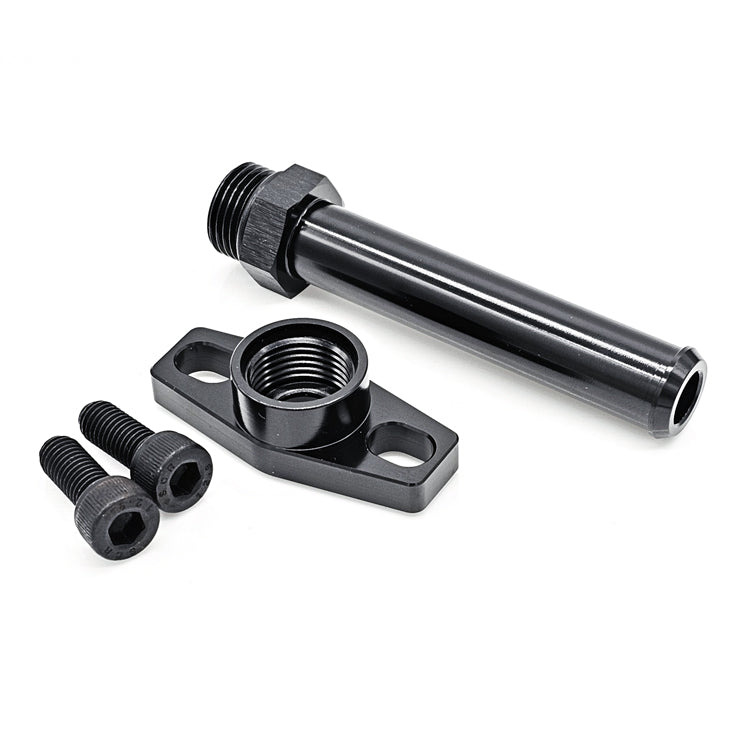

- Removable -8AN Male ORB x 5/8" Barb Extension Outlet (3.500" long)
- O-Ring Style Seating Surface
- Round Bolt Holes with a 2.000" Bolt Circle
- Precision CNC Machined
- 6061-T6 Aluminum, Black Hard Anodized Finish
- Two M8 x 1.25 Button Head Cap Screws
COMPATIBILITY
- Garrett: G40, G42, G45, G57, GTX40, GTX42, GTX45, GTX47, GTX50, GTX55, GT32, GT37, GT40, GT42, GT45, GT47, GT50, GT55
- BorgWarner: S200 SX-E/SXE, S300 SX-E/SX3 (excluding GX series), S400 SX-E, SX, SX3, SX4, S500 SX-E/SX
- Generic T3 and T4 Turbos
