Oil Drain Flange 5/8" Male Barb Extension with O-Ring Style Seating Surface (1.500" - 1.750" Bolt Circle)
Oil Drain Flange 5/8" Male Barb Extension with O-Ring Style Seating Surface (1.500" - 1.750" Bolt Circle)
Oil Drain Flange 5/8" Male Barb Extension with O-Ring Style Seating Surface (1.500" - 1.750" Bolt Circle)

Oil Drain Flange 5/8" Male Barb Extension with O-Ring Style Seating Surface (1.500" - 1.750" Bolt Circle)

23714
Only 92 left!

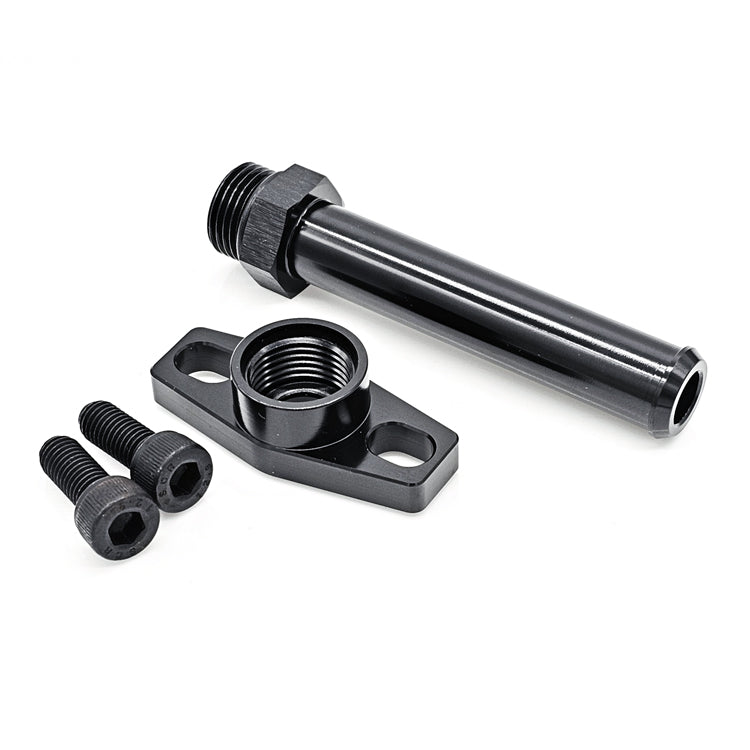

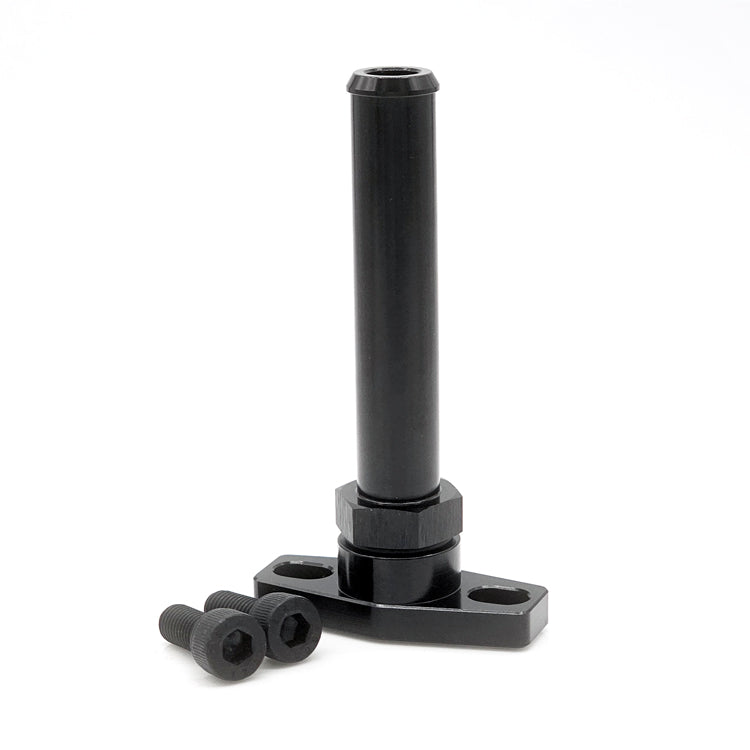

The Ace Race Parts brand of Oil Drain Flanges are offered in a wide range of configurations. This particular Oil Drain Flange features an integrated 5/8" Male Hose Barb Extension Outlet and an O-Ring Style Seating Surface to ensure a leak-free connection at all times. This particular oil drain flanges features a -8AN Female ORB Flange with a 5/8" Male Barb Extension Fitting, measuring 3.500" Long. Our oil drain flanges are precision CNC machined from solid 6061-T6 Aluminum billet and features a black hard anodized finish that will stand up to the harshest conditions.

FEATURES

  • Removable -8AN Male ORB x 5/8" Barb Extension Outlet (3.500" long)
  • O-Ring Style Seating Surface
  • Slotted Bolt Holes with a Bolt Circle range of 1.500" to 1.750"
  • Precision CNC Machined
  • 6061-T6 Aluminum, Black Hard Anodized Finish
  • Two M8 x 1.25 Button Head Cap Screws

COMPATIBILITY

  • Garrett: G25, G30, G35, GTX28, GTX29, GTX30, GTX35, GT15, GT20, GT22, GT25, GT28, GT30, GT35
  • BorgWarner: EFR B1 Frame (6258, 6758, 7163), EFR B2 Frame (7064, 7670, 8374, 8474, 9174, 9274, 9180, 9280)

Replacement O-Ring
