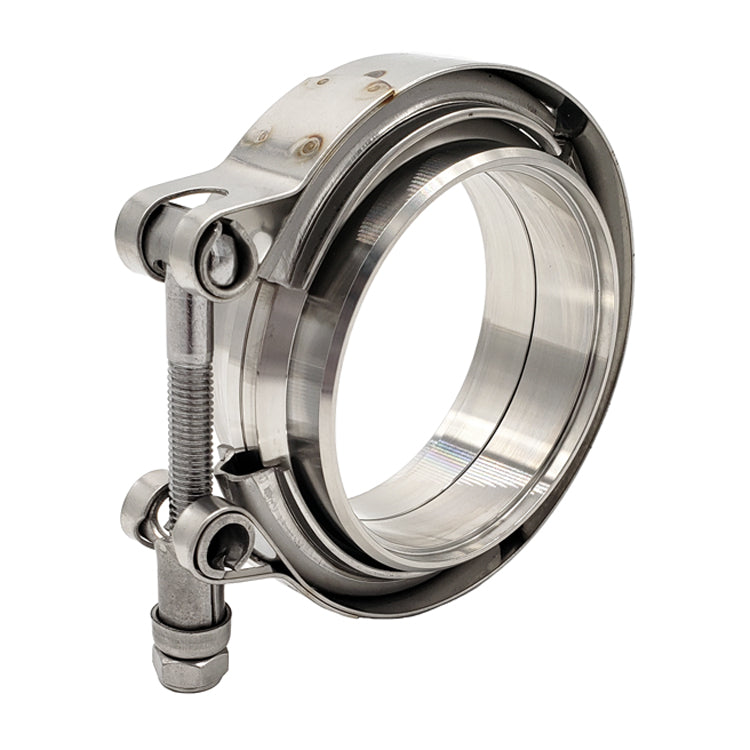

2.500" V-Band Assembly "Male/Female" Mild Steel - Standard Clamp

V-BAND ASSEMBLY — MILD STEEL INTERLOCKING FLANGES, 304 STAINLESS V-BAND CLAMP

The Ace Race Parts brand of Mild Steel V-Band Assemblies features a 304 Stainless V-Band Clamp and a set of "Male/Female" interlocking V-Band Flanges, which are precision CNC machined from solid 1018 Mild Steel round bar. Our V-Band Clamps, Flanges, and full Assemblies are suitable for fabricating exhaust systems, downpipes, merge collectors, and other custom or replacement components.

Our V-Band Flanges utilize an interlocking flange design that ensures a leak-free seal without the need for a gasket and features a counterbore on the weld side of the flange that allows the matching tube size material to slip into the flange. The counterbore is machined to a width of 0.065" and aligns with the inside diameter (ID) of matching tube size material — preventing any unnecessary reductions or restrictions in the flow of exhaust gases.

FEATURES:

• Precision CNC Machined 1018 Mild Steel Flanges
• 304 Stainless V-Band Clamp
• Male/Female Interlocking Flange Design
• Creates an Air-Tight Seal — No Gasket Required
• Flanges are Counterbored to Matching Tube Size
• Suitable for Downpipes, Exhausts, Merge Collectors, and more!

V-BAND ASSEMBLY INCLUDES:

• (1) SKU 22022 - V-Band Clamp, Standard T-Bolt Style, 304 Stainless

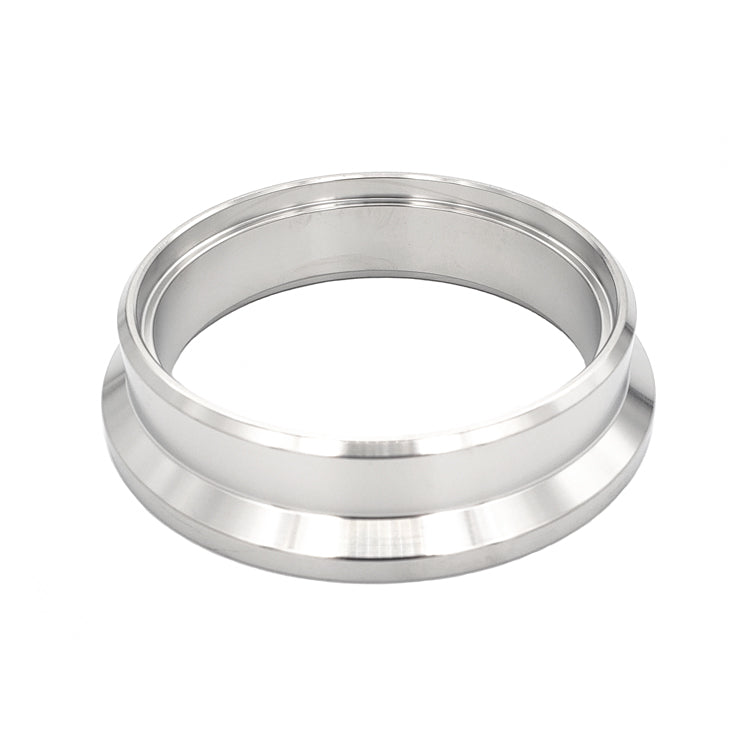

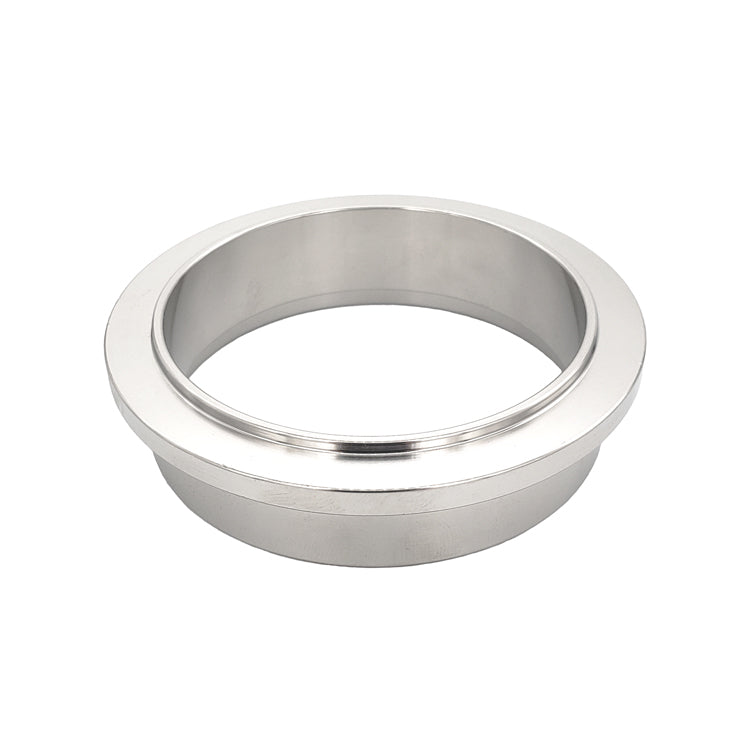

• (1) SKU 32035 - "Male" Interlocking V-Band Flange, Mild Steel

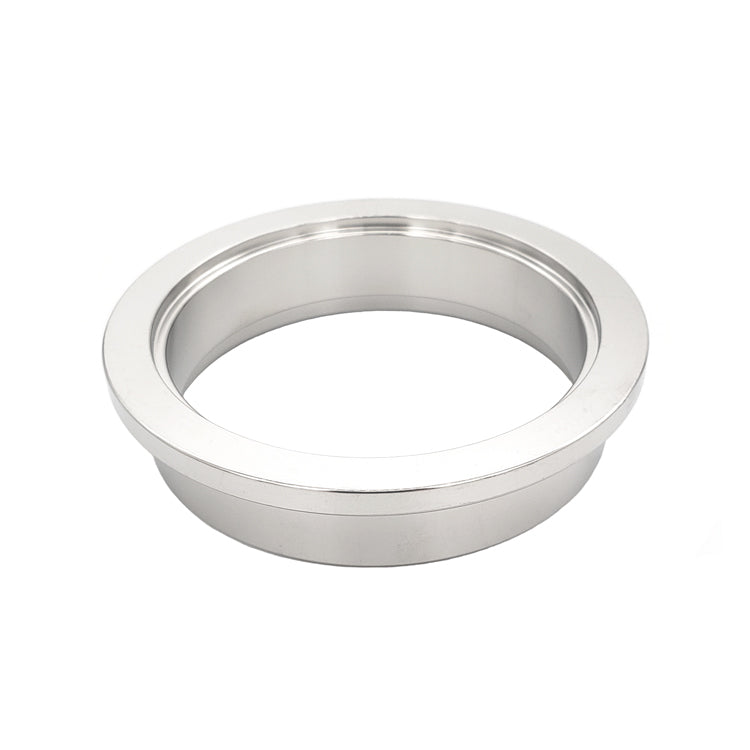

• (1) SKU 32051 - "Female" Interlocking V-Band Flange, Mild Steel

Compatibility Disclaimer: Due to flange dimension differences, "Standard" style and "Quick Release" style V-Band Clamps and Flanges are NOT cross-compatible. Ace Race Parts / K2 Fabrication is NOT responsible if incompatible V-Band components are ordered. We do not offer any compatibility guarantee with any other brand of V-Band components.
