- AN Size: -16AN
- Overall Length: 10 Foot Length
- E85 Compatible: Yes

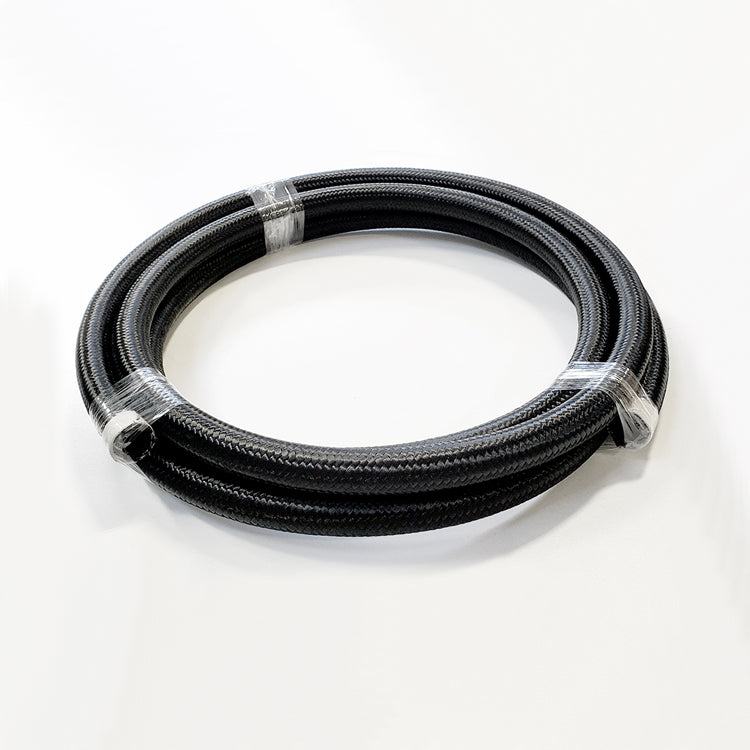

-16AN Black Nylon Braided Flex Hose with Reinforced Rubber Liner - 10 Foot Length
90251E85 COMPATIBLE BLACK NYLON BRAIDED FLEX HOSE
The Ace Race Parts brand of Black Nylon Braided Flex Hose features a double braided black nylon exterior, a stainless steel inner liner, and reinforced synthetic rubber hose. Our Flexible Race Hoses are safe for use in a wide variety of applications, including methanol, oil, water, lubricants, fuel systems (E85/E10 compatible), coolant, and vacuum service.
FEATURES

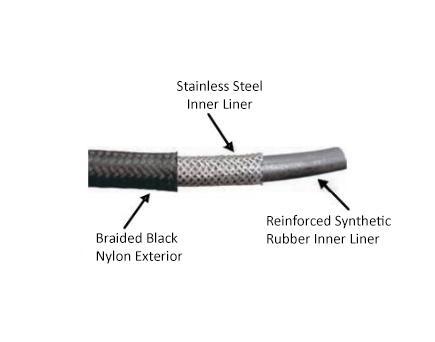

- Lightweight Black Nylon Braided Exterior
- Stainless Covered Reinforced Synthetic Rubber Inner Hose
- Operating Temperature Range: -40°F to 302°F
- Operating Pressure: 500 PSI / Burst Pressure: 2,500 PSI
- Suitable for Oil, Fuel, Coolant, and Vacuum Applications
PRODUCT DETAILS
TECHNICAL DETAILS
- Hose ID: 7/8" (22.2mm)
- Hose OD: 1-13/64" (30.5mm)
- Operating Pressure: 350 psi
- Burst Pressure: 2,500 psi
- Temp. Range: -40°F to 302°F (-40°C to 150°C)
NOTES
- This flex hose is safe for use in a wide variety of applications, including fuel systems, methanol, oil, lubricants, water, coolant and vacuum service.
- This flex hose is NOT suitable for use with brake lines or hydraulic pressure lines and is not suited for in-tank fuel or oil applications where extended submersion occurs, This flex hose is NOT suitable for A/C lines or A/C applications.
