- AN Size: -10AN
- Overall Length: 10 Foot Length
- E85 Compatible: Yes

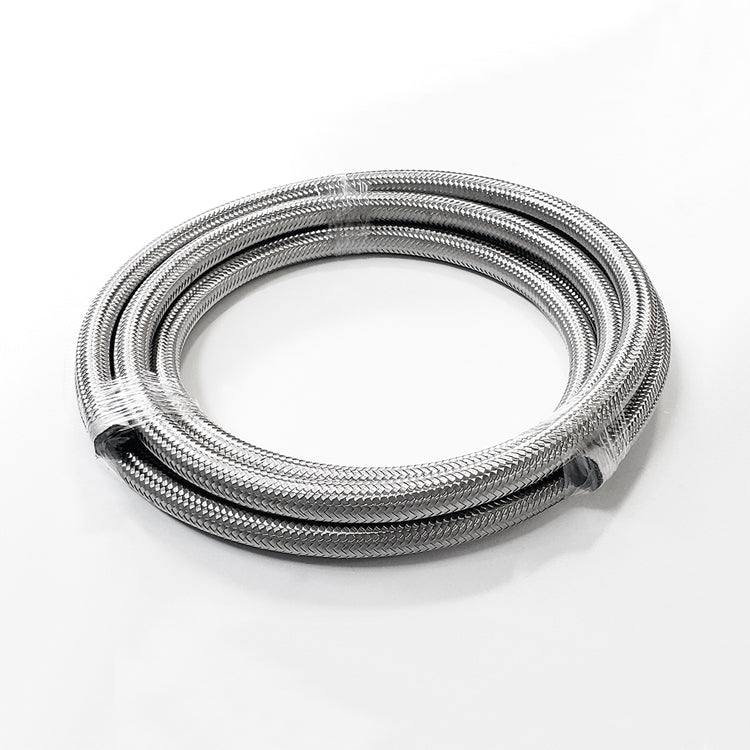

-10AN Stainless Steel Braided Flex Hose with Reinforced Rubber Liner - 10 Foot Length
90215E85 COMPATIBLE STAINLESS STEEL BRAIDED FLEX HOSE
The Ace Race Parts brand of Stainless Braided Flex Hose features a 300 series Stainless Steel double braided exterior (for added corrosion and abrasion resistance), a braided nylon inner liner, and a reinforced synthetic rubber hose. Our E85 compatible stainless braided flex hose is available in AN sizes ranging from -4AN to -20AN and is safe for use in a wide variety of applications, including methanol, oil, water, lubricants, fuel systems (E85/E10 compatible), coolant, and vacuum service.
FEATURES

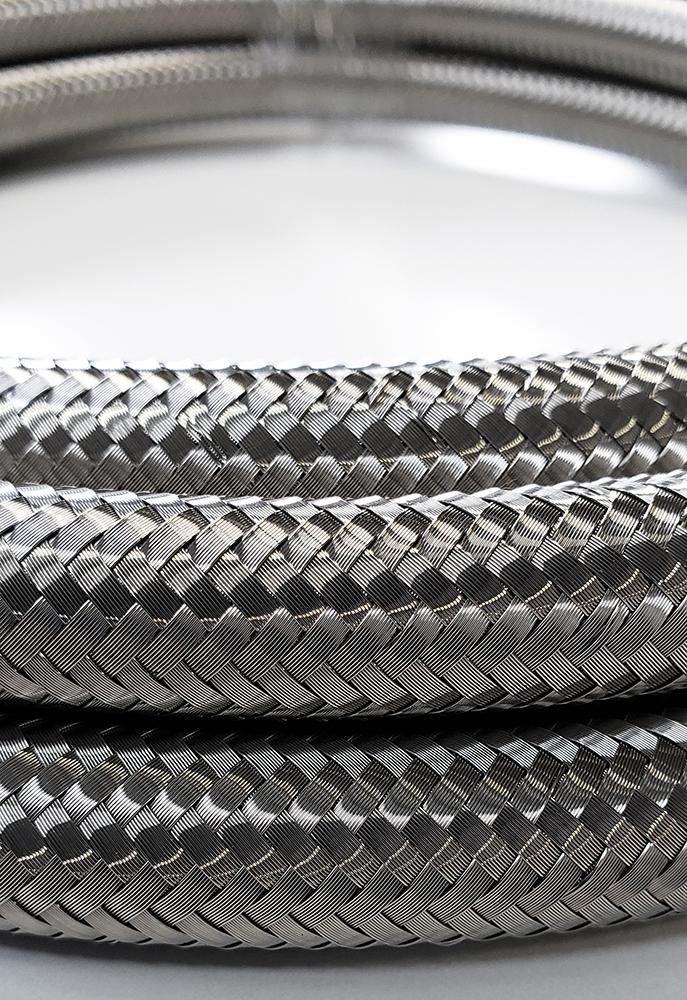

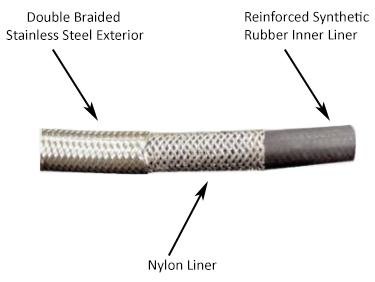

- 300 Series Stainless Steel Double Braided Exterior
- Nylon Covered Reinforced Synthetic Rubber Hose
- Operating Temperature Range: -40°F to 302°F
- Operating Pressure: 1,000 PSI / Burst Pressure: 6,000 PSI
- Suitable for Oil, Fuel, Coolant, and Vacuum Applications
PRODUCT DETAILS
TECHNICAL DETAILS
- Hose ID: 9/16" (14.2mm)
- Hose OD: 53/64" (20.8mm)
- Operating Pressure: 1,000 psi
- Burst Pressure: 6,000 psi
- Temp. Range: -40°F to 302°F (-40°C to 150°C)
NOTES
- This flex hose is safe for use in a wide variety of applications, including fuel systems, methanol, oil, lubricants, water, coolant and vacuum service.
- This flex hose is NOT suitable for use with brake lines or hydraulic pressure lines and is not suited for in-tank fuel or oil applications where extended submersion occurs, This flex hose is NOT suitable for A/C lines or A/C applications.
