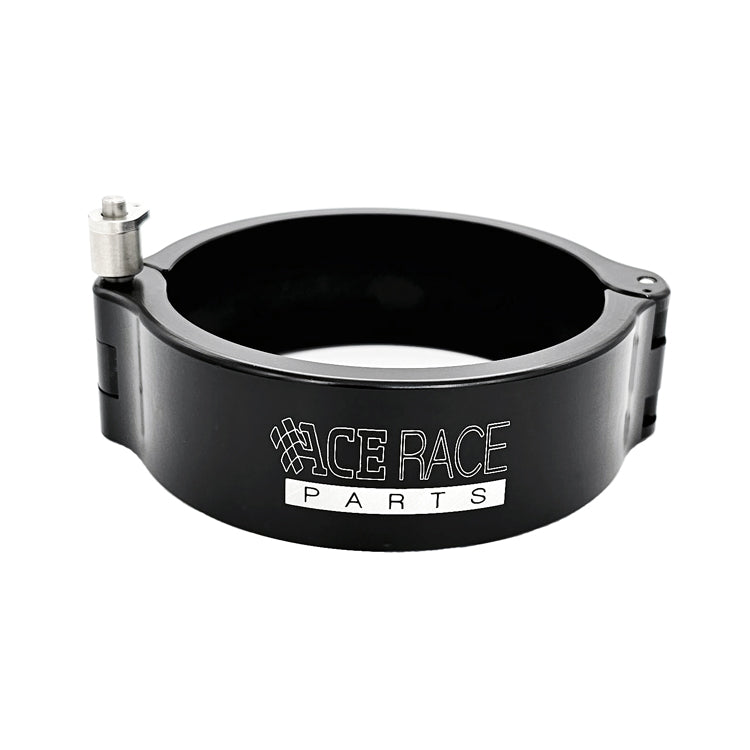

HD Clamp for 5.000" OD Tubing - Anodized Black
13225The Ace Race Parts brand of HD Clamps feature full 6061 Aluminum billet construction and are the perfect choice for high pressure air applications, like turbo intake charge piping. Our HD Clamps come with a black anodized finish that will withstand the harshest conditions. Pair our HD Clamps with our HD Clamp Flange sets, HD Clamp Union Sleeves, and FKM O-Rings to create a leak-free seal with a burst pressure rating of 800 psi.
PRODUCT HIGHLIGHTS:
- Burst Pressure Rating: 800 psi
- Temperature Rating: 400°F / 204°C
- Axial Movement, Angular Deflection: Up to 12°
- Full 6061 Aluminum Billet Construction
- Includes Quick Release Locking Pin
INCLUDES:
- (1) Clamp - 6061 Aluminum, Black Anodized
- (1) Locking Ball Pin - Stainless Steel
COMPATABILITY NOTE: Most Ace Race Parts brand of HD Clamps are compatible and interchangeable with Vibrant Performance brand of HD Clamps. The 4.000" Ace Race Parts HD Clamps are the only clamps that are not compatible with Vibrant Performance HD Clamps.
PRODUCT CROSS-REFERENCE:
| Brand | SKU |
| Ace Race Parts | 13225 |
| Vibrant Performance | 12540 |

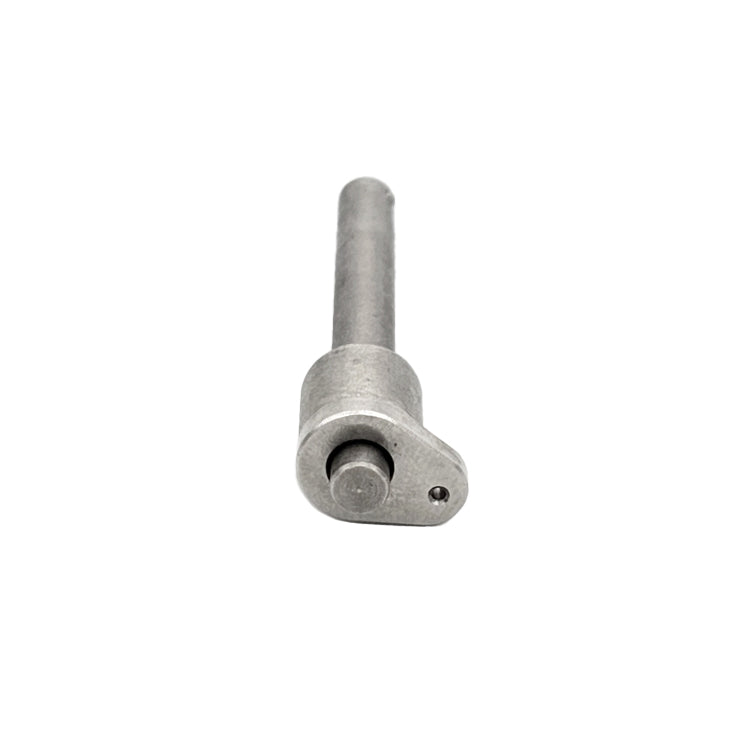

REPLACEMENT LOCKING BALL PIN: SKU 13266
