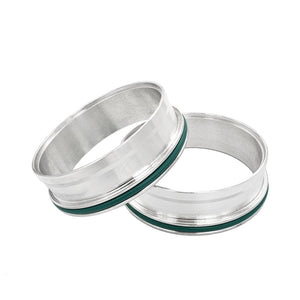

HD Clamp Flange Set for 5.000" OD Tubing, 6061 Aluminum, FKM O-Rings
13238The Ace Race Parts brand of HD Clamp Flanges, or Weld Ferrules, are precision CNC machined from 6061 Aluminum and are provided with a set of FKM High Temperature O-Rings. When paired with our HD Clamps and HD Clamp Union Sleeves, our Aluminum HD Clamp Weld Ferrules allow for up to 12 degrees of axial and angular deflection.
PRODUCT HIGHLIGHTS:
- Burst Pressure Rating: 800 psi
- Temperature Rating: 400°F / 204°C
- Axial Movement, Angular Deflection: Up to 12°
- Full 6061 Aluminum Billet Construction
INCLUDES:
- (2) 6061 Aluminum Weld Flanges
- (2) FKM High Temperature O-Rings - Green Fluororubber
COMPATABILITY NOTE: Most Ace Race Parts brand of HD Clamps are compatible and interchangeable with Vibrant Performance brand of HD Clamps. The 4.000" Ace Race Parts HD Clamps are the only clamps that are not compatible with Vibrant Performance HD Clamps.
PRODUCT CROSS-REFERENCE:
| Brand | SKU |
| Ace Race Parts | 13238 |
| Vibrant Performance | 12550 |
REPLACEMENT O-RING: SKU 13251
