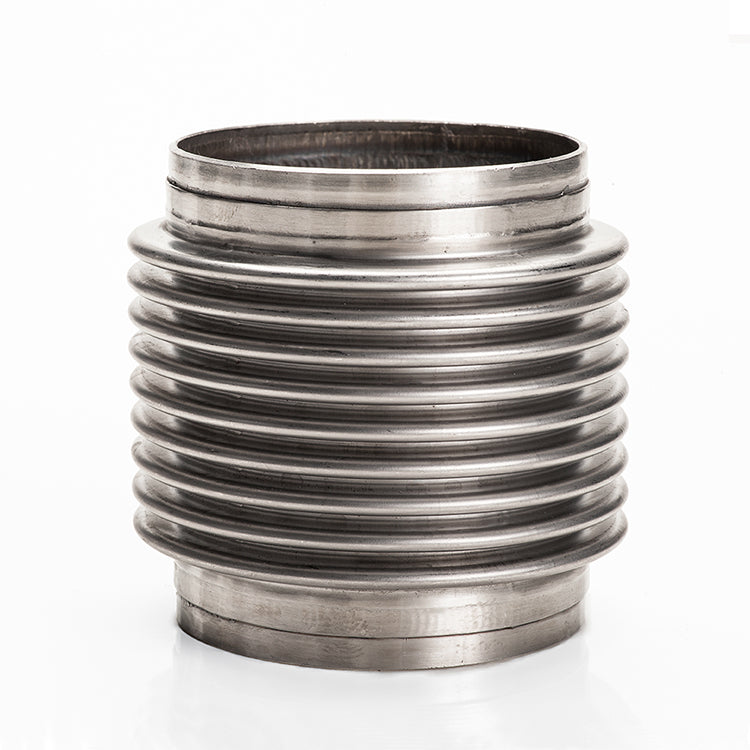

4.000" Flex Bellow (with Inner Liner) x 4.000" Overall Length - 304 Stainless
4.000" Flex Bellow (with Inner Liner) x 4.000" Overall Length - 304 Stainless
4.000" Flex Bellow (with Inner Liner) x 4.000" Overall Length - 304 Stainless
4.000" Flex Bellow (with Inner Liner) x 4.000" Overall Length - 304 Stainless
4.000" Flex Bellow (with Inner Liner) x 4.000" Overall Length - 304 Stainless

4.000" Flex Bellow (with Inner Liner) x 4.000" Overall Length - 304 Stainless

24022
Only 132 left!

FEATURES

  • 100% 304 Stainless Steel Construction
  • 2-Ply Bellow Design
  • Slip-Fit Connection Type (must be welded)
  • Directional Smooth Bore Inner Liner
  • Extremely Durable in High Pressure Applications

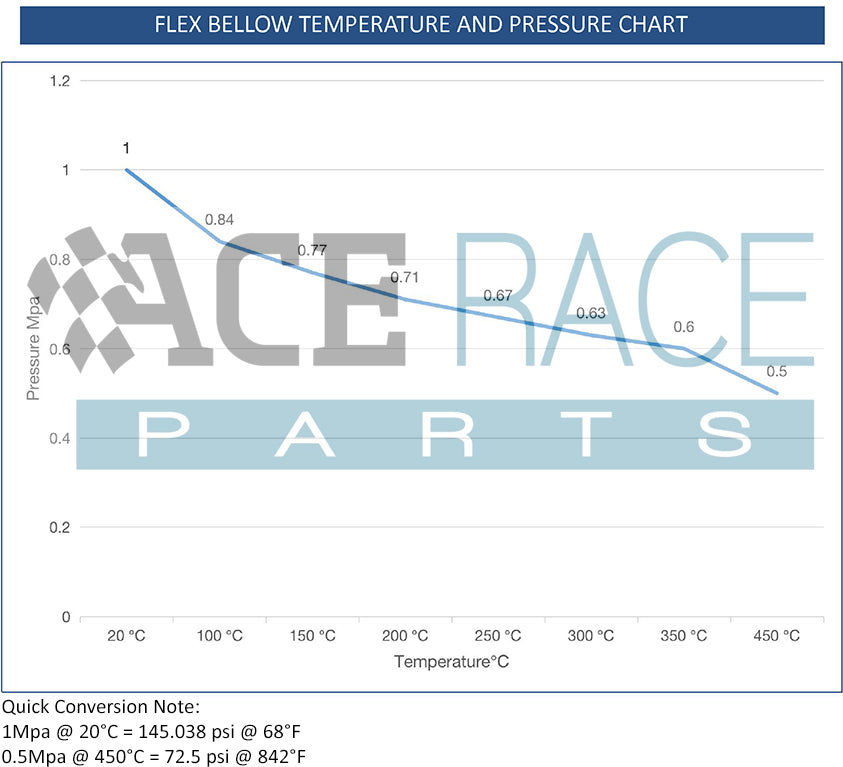

  • Pressure Tested (data listed below): 145 psi @ 68°F and 72.5 psi @ 842°F
  • Helium Leak Tested Prior to Shipment

Our 304 Stainless Steel Flex Bellows minimize the potential for cracking in turbo manifolds, dump tubes, downpipes and other automotive and industrial applications. Utilizing a slip-fit design that allows the matching tube size material to slip into the bellow, our exhaust flex bellows feature a smooth bore directional inner liner that needs to be placed in the flow of the exhaust gas.

Please note, while this style Flex Bellow is a great choice for applications that experience elongation and compression it is not intended to be used in applications where a large amount of axial flex is required. This specific 4.000" ID Flex Bellow offers a maximum bend angle of 0.7°.

PRODUCT DETAILS
  • Connection Type: Slip-Fit
  • Inlet/Outlet ID: 4.000"
  • Inner Liner ID: 3.750"
  • Overall Length: 4.000"
  • Inner Liner Style: Smooth Bore, Directional

PRODUCT SPECIFICATIONS

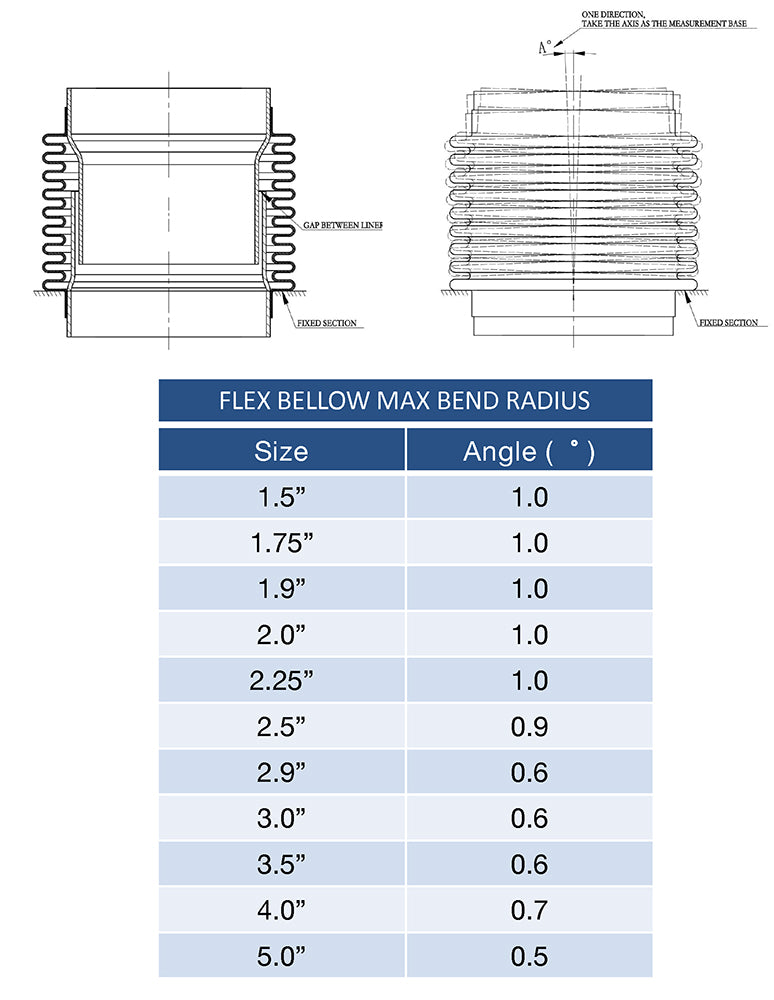

  • Max. Bend Angle: 0.7°

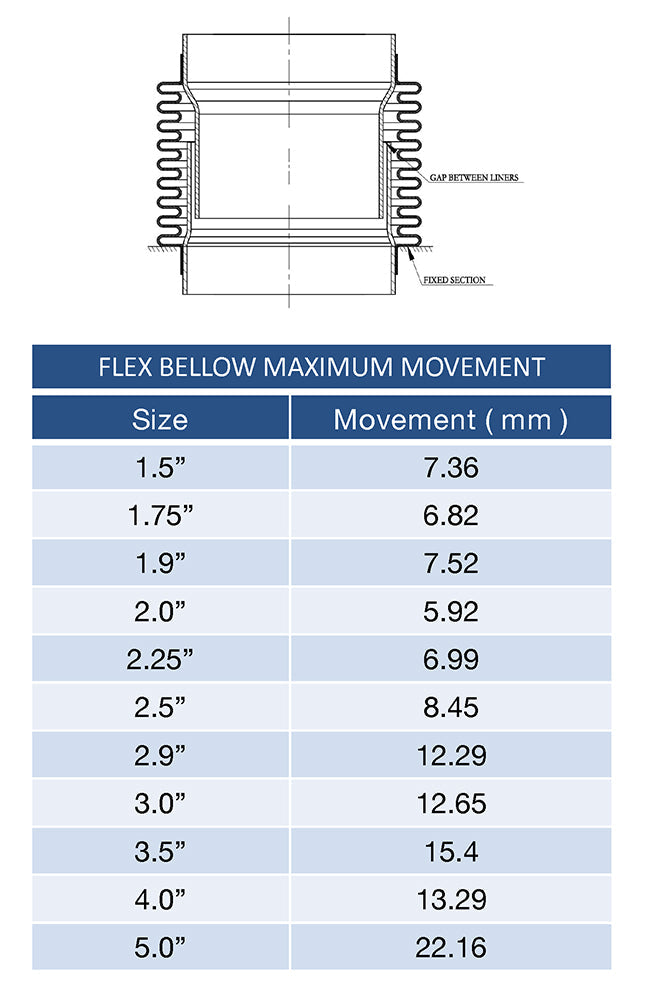

  • Max. Movement: 0.523" (13.29mm)
  • Operating Temperature: 932°F (500°C)
  • Max. Temperature: 1,697°F
