- Inside Diameter: 3.000"
- Bolt Circle: 3.425"
- Flange Thickness: 0.315" (8mm)

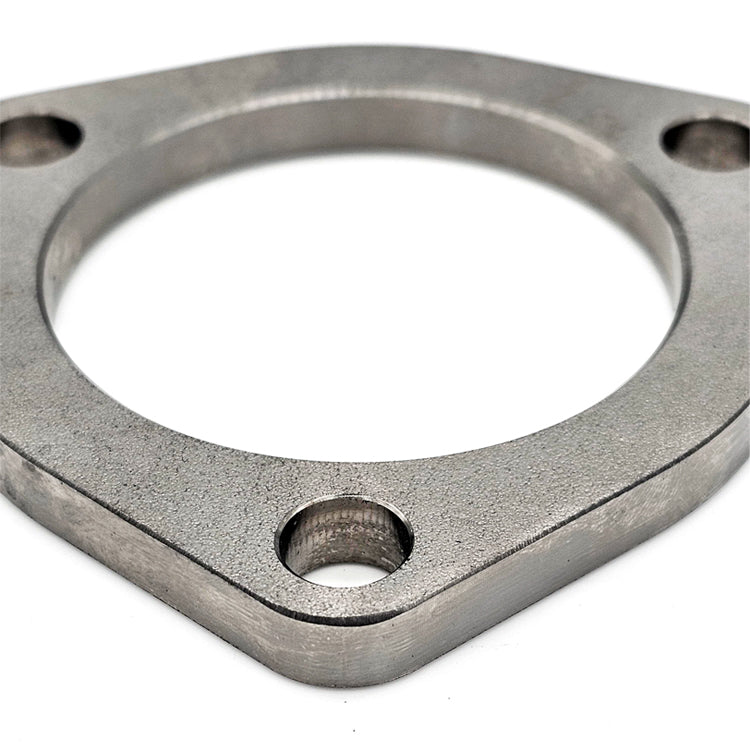

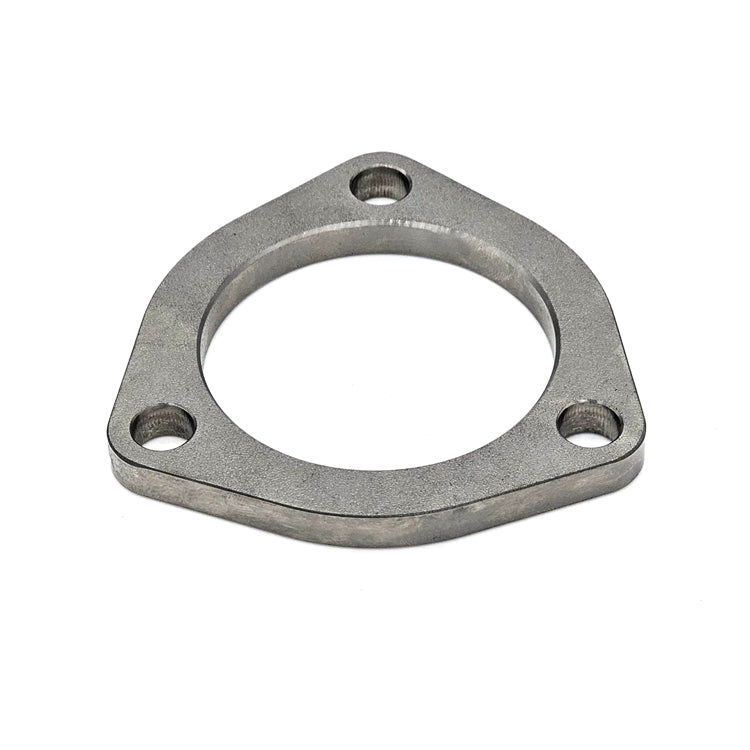

3.000" ID 3-Bolt Exhaust Flange CP2 Titanium
740293.000" ID 3-BOLT EXHAUST FLANGE CP2 TITANIUM - 3.425" BOLT CIRCLE
The Ace Race Parts brand of 3-Bolt Exhaust Flanges is precision-cut from CP2 Titanium. Each flange features chamfered edges, round bolt holes, and an overall thickness of 8mm (5/16"). These flanges are directly compatible with our 304 Stainless 3-Bolt Flanges and 3-Bolt Exhaust Flange Gaskets, making them an excellent choice for transitioning from Titanium to Stainless in existing bolted exhaust applications.
DIMENSIONS
DETAILS
- Flange/Gasket Type: Exhaust; 3-Bolt
- Hole Style: Slotted
- Material Type: CP2 Titanium
- Compatible Gasket: SKU 27036
NOTE: Please review the provided product measurements. It is the customer's responsibility to verify that the bolt circle or bolt pattern of their application matches the dimensions provided for our products.
