3.000" ID 2-Bolt Exhaust Flange CP2 Titanium
3.000" ID 2-Bolt Exhaust Flange CP2 Titanium

3.000" ID 2-Bolt Exhaust Flange CP2 Titanium

74024
Only 12 left!

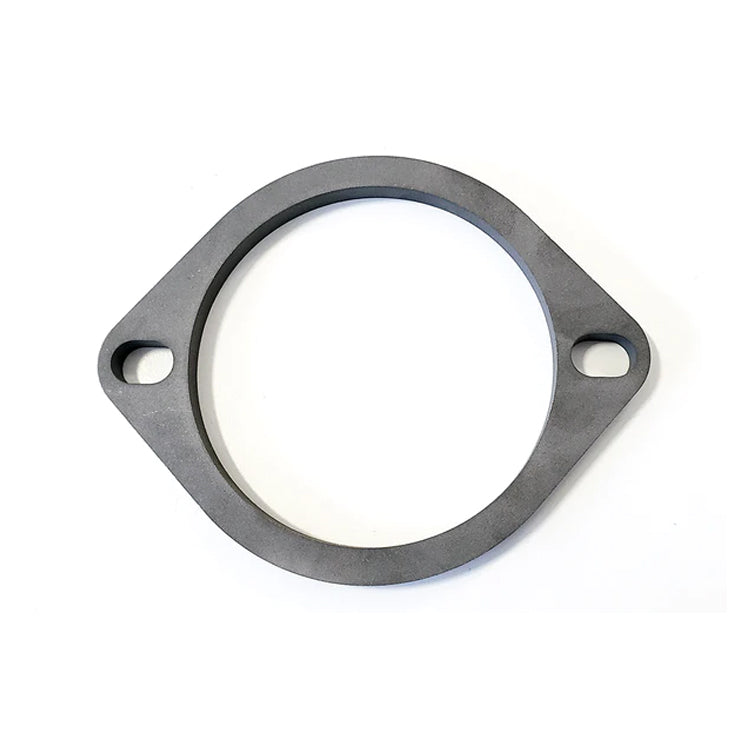

Ace Race Parts 3" 2-Bolt Exhaust Flanges are precision laser cut from 0.315" (8mm) thick CP2 Titanium plate in an ISO 9001 certified facility. After the cutting process is completed the flange is de-burred, inspected for the correct dimensions and flatness, and then cleaned. Each 2-Bolt Flange features slotted bolt holes to allow for minor adjustments in regard to positioning and installation.

DIMENSIONS
  • Inside Diameter: 3.000"
  • Flange Width: 5.039"
  • Flange Height: 3.700"
  • Bolt Circle: 4.134"
  • Flange Thickness: 0.315" (8mm)
DETAILS
  • Flange/Gasket Type: Exhaust; 2-Bolt
  • Hole Style: Slotted
  • Material Type: CP2 Titanium
  • Compatible Gasket: SKU 27015
NOTE: Please review the provided product measurements. It is the customer's responsibility to verify that the bolt circle or bolt pattern of their application matches the dimensions provided for our products.
