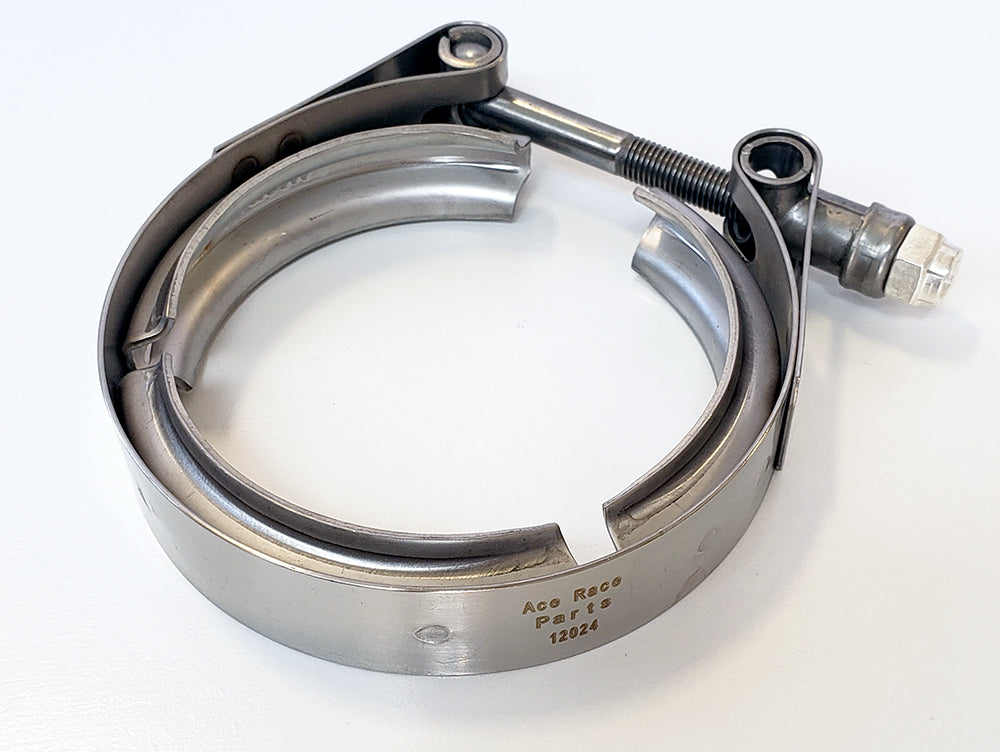

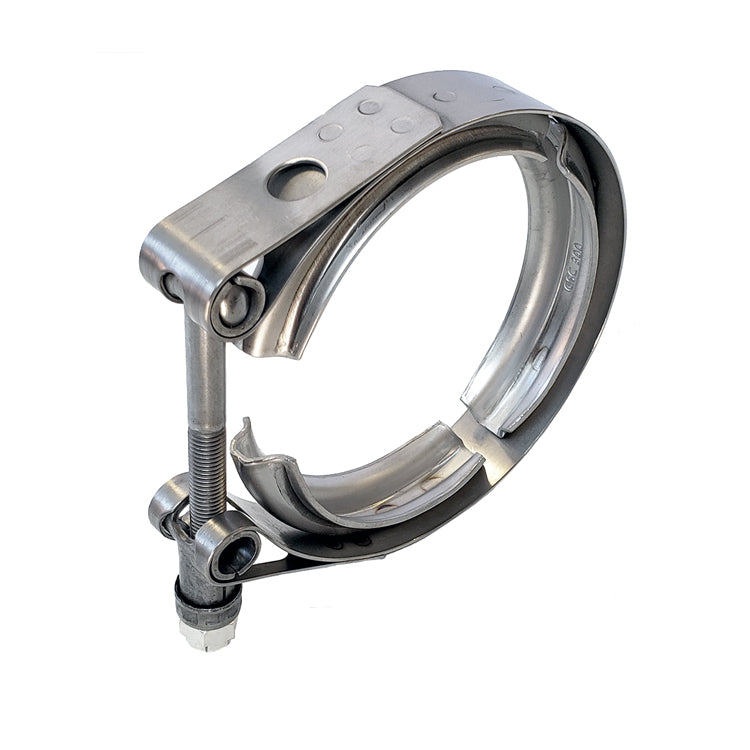

Ace Race Parts 304 Stainless Steel V-Band Clamps for Aluminum and Stainless Flanges feature a "Standard" T-Bolt style clamping mechanism to ensure a tight, leak-free seal. These V-Band Clamps fit all Ace Race Parts brand Aluminum, Quick Release Stainless, & Titanium Flanges. These do not fit Mild Steel or Standard Stainless Flanges.
V-Band Clamp Sizing Information: Our V-Band Clamp sizing is in reference to the intended matching tube size diameter, not the clamping range of the clamp itself. This specific V-Band Clamp is intended to be used with 3.500" ID V-Band Flanges (matching tube size: 3.500" OD) and will accept V-Band Flanges with an overall OD of 4.232".
COMPATIBLE PRODUCTS:
- SKU 12058 - 3.500" "Male + O-Ring" V-Band Flange - 6061 Aluminum
- SKU 12068 - 3.500" "Female" V-Band Flange - 6061 Aluminum
- SKU 12008 - 3.500" V-Band Assembly - Aluminum
- SKU 22142 - 3.500" "Male" V-Band Flange (Quick Release) - 304 Stainless
- SKU 22158 - 3.500" "Female" V-Band Flange (Quick Release) - 304 Stainless
- SKU 22110 - 3.500" V-Band Assembly (Quick Release) - 304 Stainless
- SKU 72042 - 3.500" "Male" V-Band Flange - CP2 Titanium
- SKU 72058 - 3.500" "Female" V-Band Flange - CP2 Titanium
- SKU 72010 - 3.500" V-Band Assembly - Titanium
- SKU 22140-1 - 3.500" X 3.000" "Male" Reducing V-Band Flange - 304 Stainless
- SKU 22206 - 3.500" X 3.000" Reducing V-Band Assembly - 304 Stainless
- SKU 12067-1 - 3.500" X 3.000" "Female" Reducing V-Band Flange - 6061 Aluminum
- SKU 12206 - 3.500" X 3.000" Reducing V-Band Assembly - Aluminum
- SKU 12008-1 - 3.500" V-Band Assembly - Aluminum / Stainless Combination
- SKU 72010-1 - 3.500" V-Band Assembly - Titanium / Stainless Combination
-
Matching Tube Size: 3.500"
- Matching Overall Flange OD: 4.232"
- Matching Flange Apex Width: 0.137"
- Matching Flange Base Width: 0.210"
-
Clamp Type: V-Band, Standard T-Bolt
- Removable T-Bolt: No
- Fastener Size: 5/16"-24
- Fastener Torque Specs: Dry: 10-14 Ft/Lbs | Lubed: 7.2-10 Ft/Lbs
Compatibility Disclaimer: Due to flange dimension differences, "Standard" style and "Quick Release" style V-Band Clamps and Flanges are NOT cross-compatible. Ace Race Parts / K2 Fabrication is NOT responsible if incompatible V-Band components are ordered. We do not offer any compatibility guarantee with any other brand of V-Band components.
