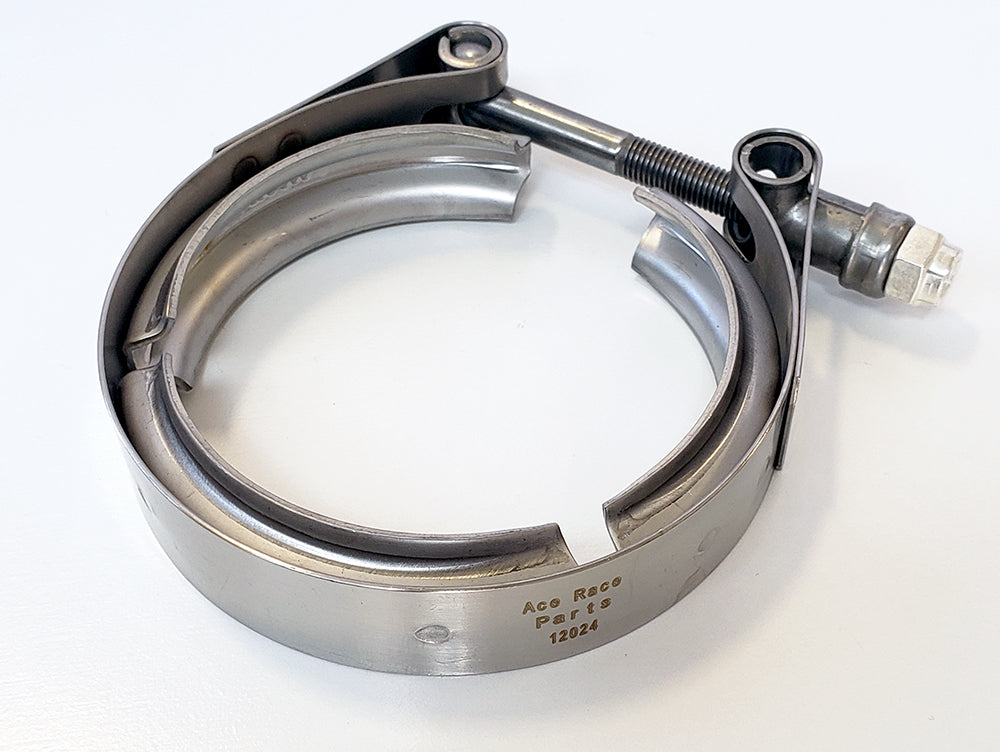

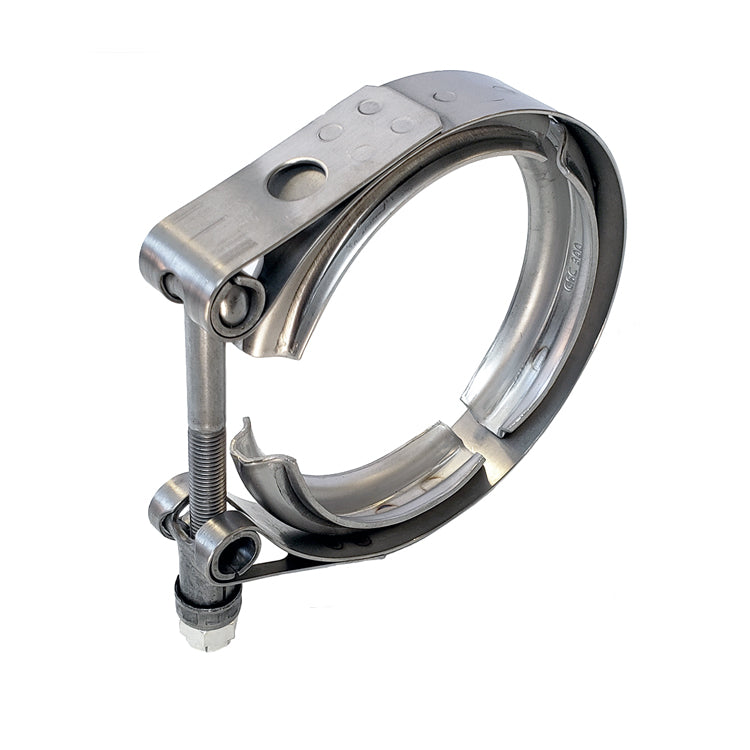

2.250" V-Band Clamp (for 2.980" OD Aluminum and Stainless Flanges) - 304 Stainless

Ace Race Parts 304 Stainless Steel V-Band Clamps for Aluminum and Stainless Flanges feature a "Standard" T-Bolt style clamping mechanism to ensure a tight, leak-free seal. These V-Band Clamps fit all Ace Race Parts brand Aluminum, Quick Release Stainless, & Titanium Flanges. These do not fit Mild Steel or Standard Stainless Flanges.

V-Band Clamp Sizing Information: Our V-Band Clamp sizing is in reference to the intended matching tube size diameter, not the clamping range of the clamp itself. This specific V-Band Clamp is intended to be used with 2.250" ID V-Band Flanges (matching tube size: 2.250" OD) and will accept V-Band Flanges with an overall OD of 2.980".

COMPATIBLE PRODUCTS:

• SKU 12054 - 2.250" "Male + O-Ring" V-Band Flange - 6061 Aluminum

• SKU 12064 - 2.250" "Female" V-Band Flange - 6061 Aluminum
• SKU 12004 - 2.250" V-Band Assembly - Aluminum
• SKU 22137 - 2.250" "Male" V-Band Flange (Quick Release) - 304 Stainless
• SKU 22153 - 2.250" "Female" V-Band Flange (Quick Release) - 304 Stainless

• SKU 22105 - 2.250" V-Band Assembly (Quick Release) - 304 Stainless
• SKU 72037 - 2.250" "Male" V-Band Flange - CP2 Titanium
• SKU 72053 - 2.250" "Female" V-Band Flange - CP2 Titanium
• SKU 72005 - 2.250" V-Band Assembly - CP2 Titanium

Compatibility Disclaimer: Due to flange dimension differences, "Standard" style and "Quick Release" style V-Band Clamps and Flanges are NOT cross-compatible. Ace Race Parts / K2 Fabrication is NOT responsible if incompatible V-Band components are ordered. We do not offer any compatibility guarantee with any other brand of V-Band components.
