- Material Type: 6061-T6 Aluminum
- Bung Type: Weld Bung; Male AN
- Connection Type: 37° Flare
- Thread Type: Male

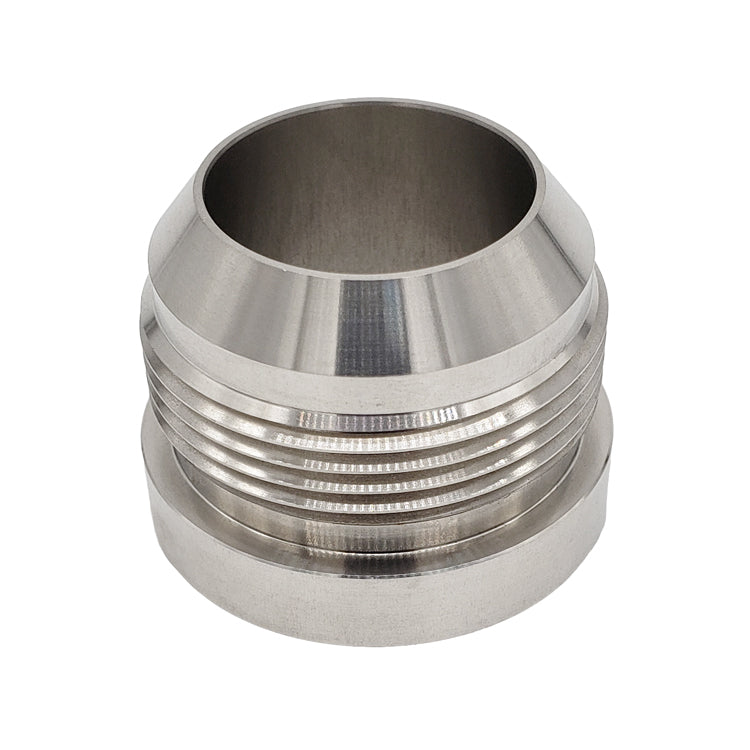

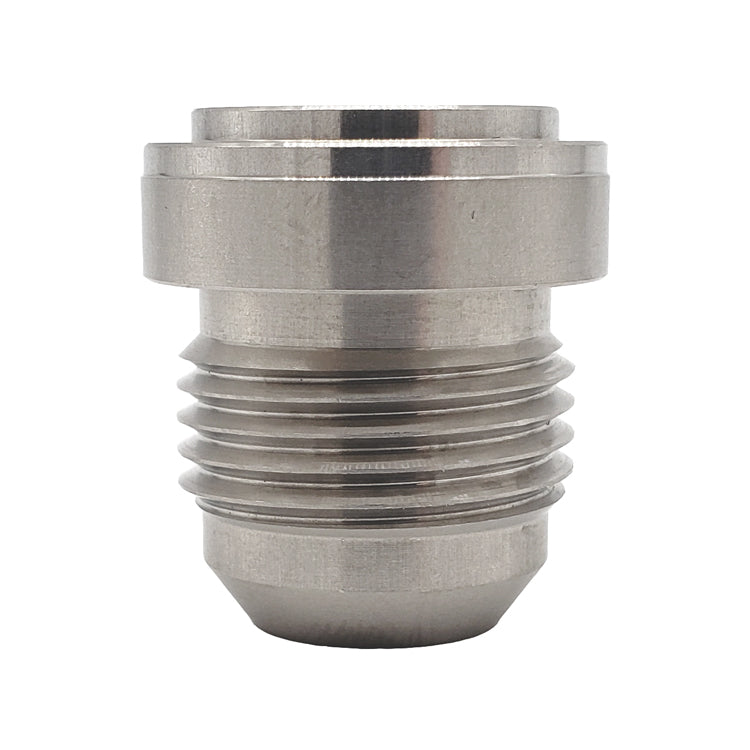

-12AN Male Weld Bung - 6061 Aluminum
26034The Ace Race Parts brand of -12AN Male AN Weld Bungs are precision CNC machined from 6061-T6 Aluminum and feature a 37° flared sealing connection. Our line of Male Weld Bungs are available in sizes ranging from -4AN to -20AN and are suitable in high pressure applications, like fuel systems, fuel cells, oil tanks, and other custom applications.
FEATURES
- 37° Flare Connection
- Precision CNC Machined from 6061-T6 Aluminum
- Capable of Handling High Pressure Applications
- Suitable for Fuel Systems (E85 Compatible) and more!
DETAILS
DIMENSIONS
- AN Size: -12AN
- SAE Thread Size: 1-1/16"-12
- Shoulder Diameter: 1.129"
- Height: 1.255"
