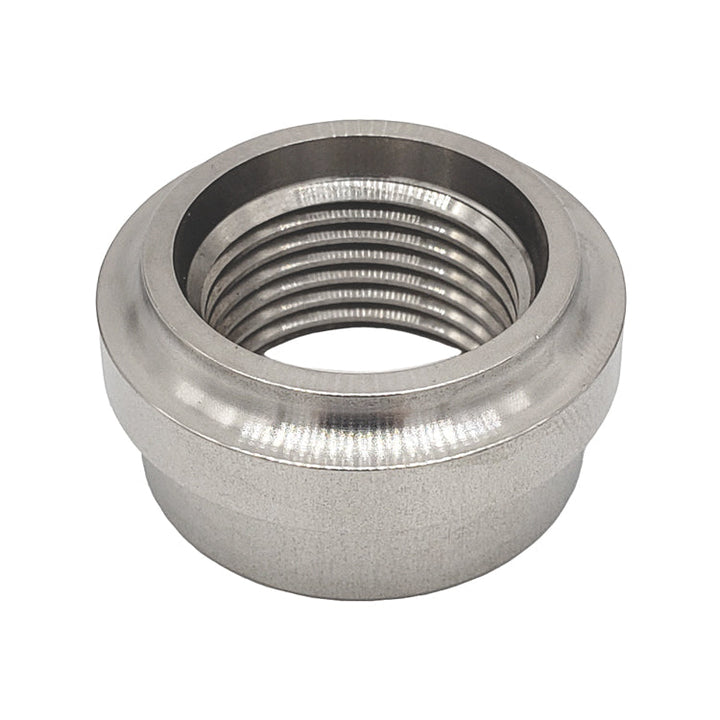

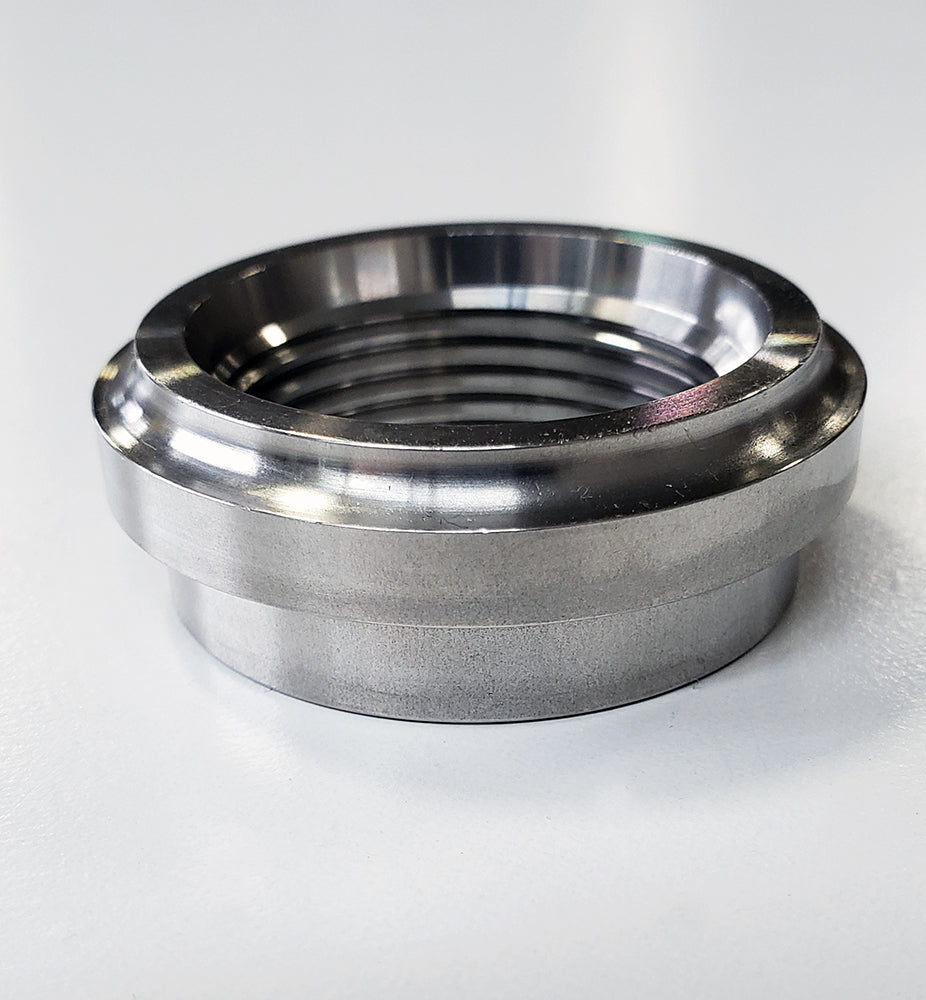

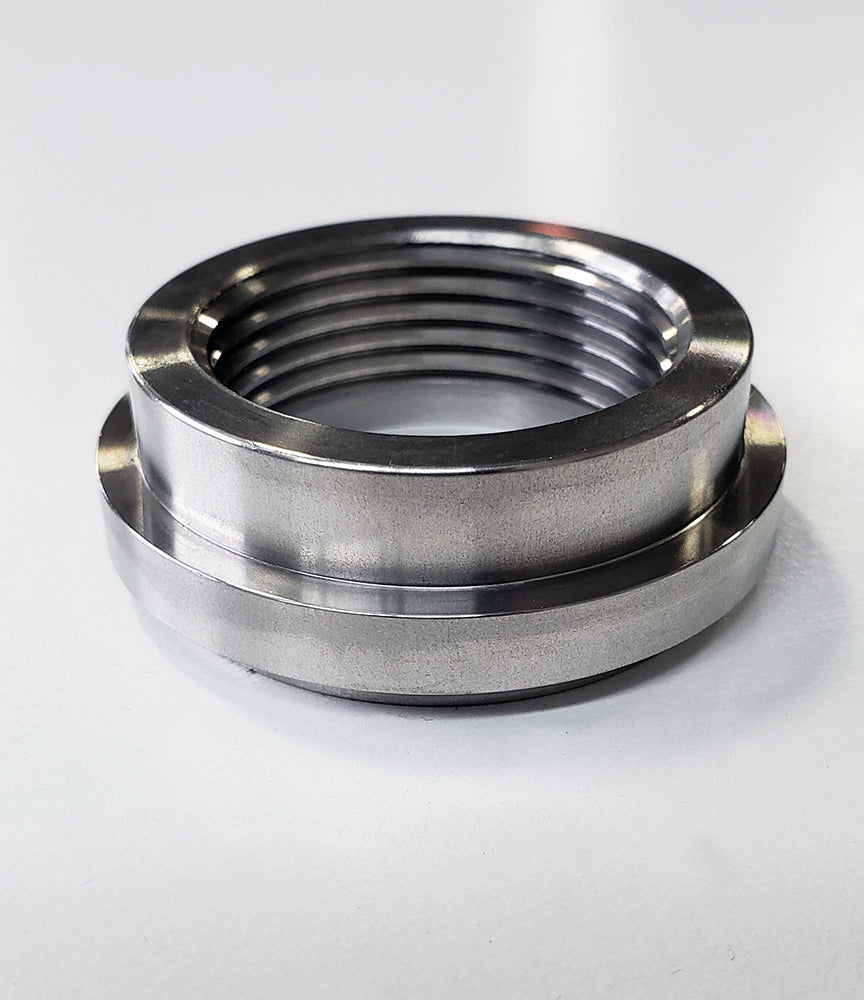

-12AN Female Weld Bung - 304 Stainless

26064
  • $14.75

Only 61 left!

The Ace Race Parts brand of -12AN Female ORB AN Weld Bungs are precision CNC machined from 304 Stainless Steel and feature a stepped design for added weld strength and durability. Our line of Female ORB Weld Bungs are available in sizes ranging from -4AN to -20AN and are suitable in high pressure applications, like fuel systems, fuel cells, oil tanks, and other custom applications.

FEATURES

  • ORB (O-Ring Boss) Connection
  • Reusable SAE Straight Thread
  • Precision CNC Machined from 304 Stainless
  • Capable of Handling High Pressure Applications
  • Suitable for Fuel Systems (E85 Compatible) and more!
DETAILS
  • Material Type: 304 Stainless
  • Bung Type: Weld Bung; Female AN\
  • Connection Type: O-Ring Boss (ORB)
  • Thread Type: Female - Straight Thread
DIMENSIONS
  • AN Size: -12AN
  • SAE Thread Size: 1-1/16"-12
  • Shoulder Diameter: 1.624"
  • Body Diameter: 1.365"
  • Height: 0.624"

Pair with our AN Fittings & Hoses
