- Material Type: 304 Stainless
- Bung Type: Weld Bung; Female AN
- Connection Type: O-Ring Boss (ORB)
- Thread Type: Female - Straight Thread

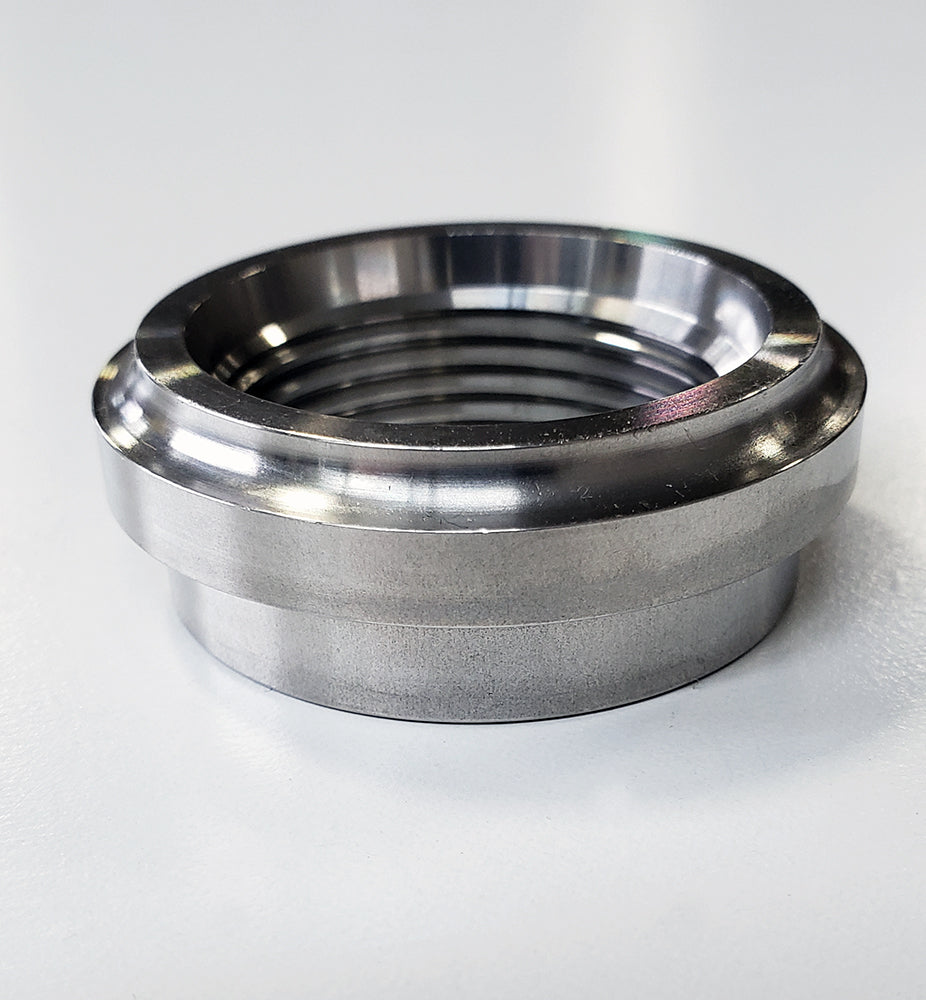

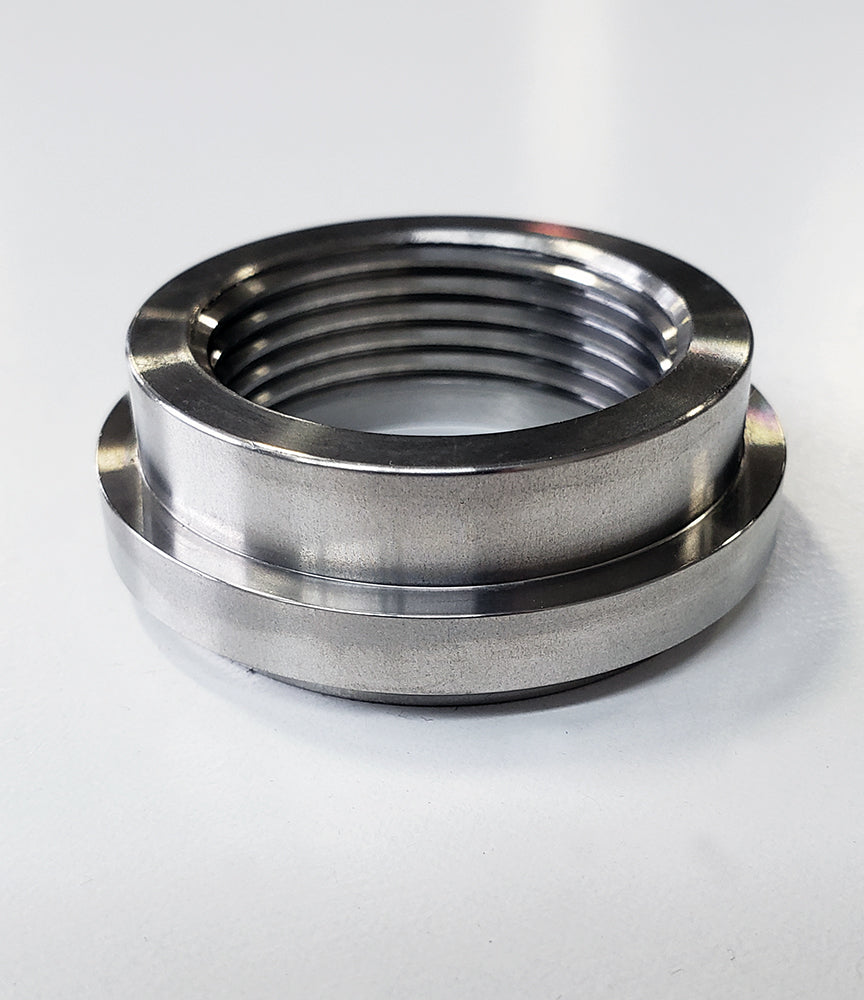

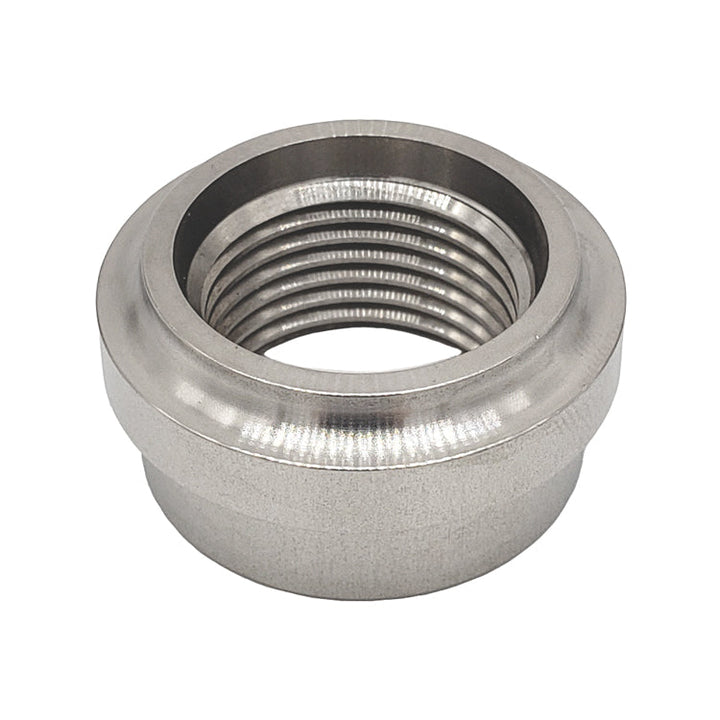

-10AN Female Weld Bung - 304 Stainless
26063The Ace Race Parts brand of -10AN Female ORB AN Weld Bungs are precision CNC machined from 304 Stainless Steel and feature a stepped design for added weld strength and durability. Our line of Female ORB Weld Bungs are available in sizes ranging from -4AN to -20AN and are suitable in high pressure applications, like fuel systems, fuel cells, oil tanks, and other custom applications.
FEATURES
- ORB (O-Ring Boss) Connection
- Reusable SAE Straight Thread
- Precision CNC Machined from 304 Stainless
- Capable of Handling High Pressure Applications
- Suitable for Fuel Systems (E85 Compatible) and more!
DETAILS
DIMENSIONS
- SAE Thread Size: 7/8"-14
- Shoulder Diameter: 1.346"
- Body Diameter: 1.180"
- Height: 0.661"
Pair with our AN Fittings & Hoses
