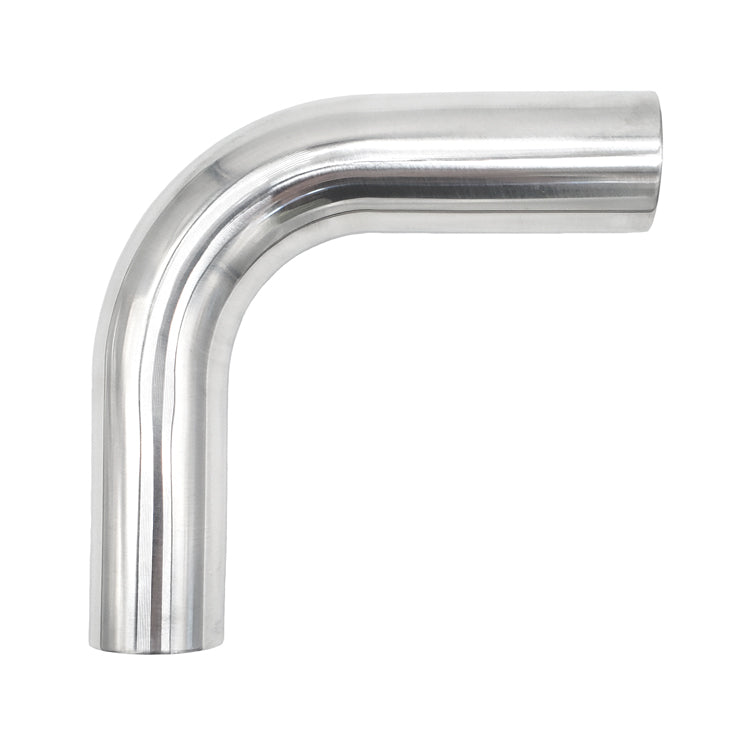

2.000" OD 16ga 90° Mandrel Bend - Polished OD - 6061 Aluminum - (3.000" CLR / 6.000" Legs)
2.000" OD 16ga 90° Mandrel Bend - Polished OD - 6061 Aluminum - (3.000" CLR / 6.000" Legs)

2.000" OD 16ga 90° Mandrel Bend - Polished OD - 6061 Aluminum - (3.000" CLR / 6.000" Legs)

11021
Only 86 left!

The Ace Race Parts line of 6061-T6 Aluminum Mandrel Bends offers fabricators of intercooler piping, intakes, and other custom components a high-quality welding experience with virtually no need for surface preparation. Our mandrel bends are manufactured using the latest CNC mandrel bending technology and feature consistent dimensions, surface finish, and material composition.

FEATURES:

  • Fabricate Intercooler Piping, Intakes, and more!
  • 6061-T6 Aluminum
  • Highly Polished Finish
  • Mandrel Bent Using a CNC Mandrel Bender
  • Virtually No Need for Surface Preparation Prior to Welding

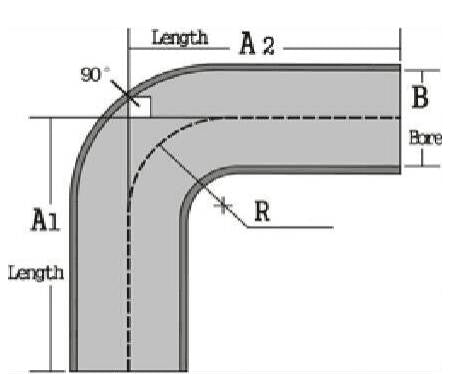

DETAILS:
  • Outside Diameter: 2.000"
  • Wall Thickness: 16ga (0.065"±)
  • Inside Diameter: 1.870"
  • Bend Angle: 90°
  • Centerline Radius (CLR): 3.000"
  • Leg/Tangent Length: 6.000"
  • Finish: Polished OD
Dimensional Disclaimer: Due to the allowable tolerances of tube size material all dimensions are approximate only. We make no guarantees that the OD, ID, or Wall Thickness are exact dimensions.
