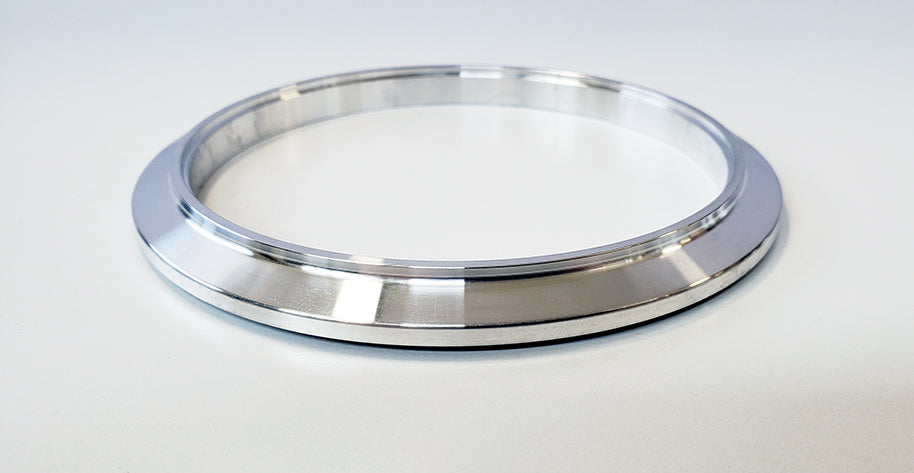

4.000" V-Band "Female" Flange (0.375" Overall Thickness) 6061 Aluminum

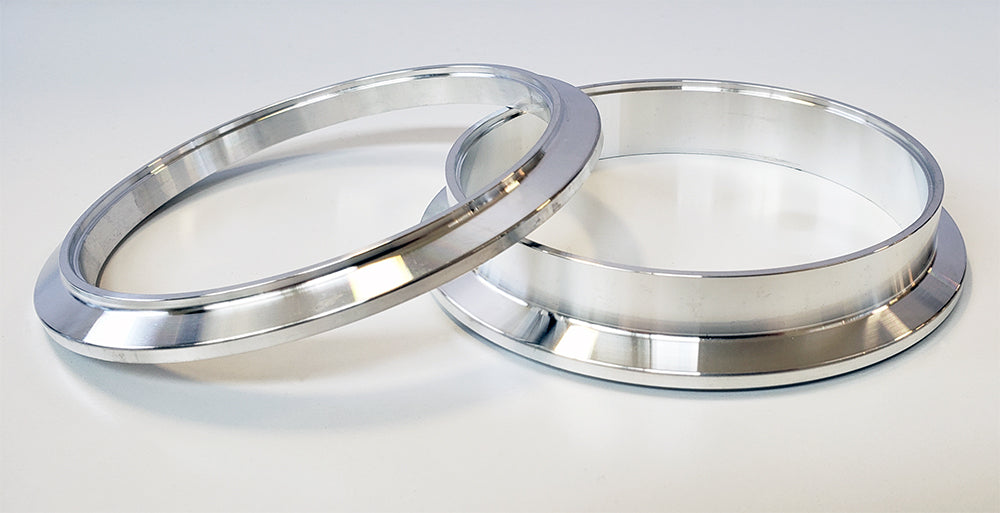

Our Aluminum V-Band Flanges are precision CNC machined from solid 6061 Aluminum billet and are offered in two configurations: "Male + O-Ring" and "Female". When combined with a compatible v-band clamp, our interlocking aluminum v-band flanges create an air-tight connection for a wide range of automotive applications.

FEATURES:

• 0.375" Thick Ultra Low-Profile Flange for applications with limited space (Standard Flanges are 0.790" Thick)
• CNC machined from solid 6061 Aluminum billet
• Female style seating surface

• Counterbored to fit matching tube size
• Suitable for a wide range of uses, including automotive, diesel, and industrial applications

COMPATIBLE PRODUCTS:

• SKU 12060 - 4.000" "Male + O-Ring" V-Band Flange - 6061 Aluminum
• SKU 22128 - 4.000" V-Band Clamp (Quick Release) - 304 Stainless
• SKU 12027 - 4.000" V-Band Clamp (NOT Quick Release) - 304 Stainless

• SKU 12010 - 4.000" V-Band Assembly - Aluminum
• SKU 22144 - 4.000" "Male" V-Band Flange - 304 Stainless

• SKU 72044 - 4.000" "Male" V-Band Flange - CP2 Titanium
• SKU 12060-1 - 4.000" "Male + O-Ring" V-Band Flange (0.375" Thick Low-Profile) - 6061 Aluminum
• SKU 22142-1 - 4.000" X 3.500" "Male" Reducing V-Band Flange - 304 Stainless

Compatibility Disclaimer: Due to flange dimension differences, "Standard" style and "Quick Release" style V-Band Clamps and Flanges are NOT cross-compatible. Ace Race Parts / K2 Fabrication is NOT responsible if incompatible V-Band components are ordered. We do not offer any compatibility guarantee with any other brand of V-Band components.
