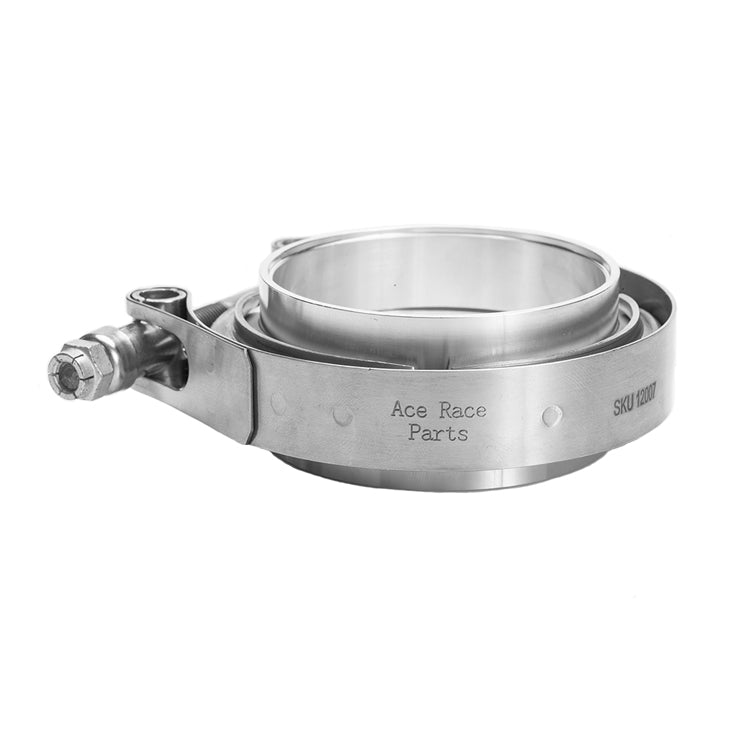

3.500" V-Band Assembly - Aluminum "Male + O-Ring/Female" Flanges, 304 Stainless Clamp

Ace Race Parts Aluminum V-Band Assemblies are precision CNC machined from 6061-T6 Aluminum and feature a 304 stainless V-Band Clamp, a "Male + O-Ring" style Aluminum V-Band Flange and a "Female" style Aluminum V-Band Flange. Aluminum V-Band Flanges and Clamps are an affordable and durable type of clamping system that is suited for high performance automotive, diesel, marine, and industrial applications.

The seating surface (the area where the two flanges meet) of our "Male+O-Ring/Female" interlocking style Aluminum V-Band Flanges utilize an interlocking flange design to create an air-tight, leak free seal. In extremely high temperature applications, where a Buna O-Ring will not be suitable, the interlocking style flange design allows for a leak free seal without the use of the O-Ring. The weld side of our Aluminum V-Band Flanges are CNC machined with a counterbore to allow the matching tube size material to slip into the V-Band Flange and be welded in place. The V-Band Flange counterbore is machined to be 0.065" wide and allows for the inside diameter (ID) of 16 gauge wall thickness tube to align perfectly with the ID of the V-Band Flange without any restrictions or reductions.

FEATURES:

• CNC machined from solid 6061 Aluminum billet
• Male + O-Ring/Female Interlocking Flanges

• High Temperature O-Ring
• Counterbored to fit matching tube size
• Suitable for a wide range of uses, including automotive, diesel, and industrial applications

V-BAND ASSEMBLY INCLUDES:

• (1) SKU 12025 - 304 Stainless Steel V-Band Clamp
• (1) SKU 12058 - "Male + O-Ring" Aluminum V-Band Flange
• (1) SKU 12068 - "Female" Aluminum V-Band Flange

Compatibility Disclaimer: Due to flange dimension differences, "Standard" style and "Quick Release" style V-Band Clamps and Flanges are NOT cross-compatible. Ace Race Parts / K2 Fabrication is NOT responsible if incompatible V-Band components are ordered. We do not offer any compatibility guarantee with any other brand of V-Band components.
