- Nominal Size: 2" (2.375")
- Wall Thickness: Schedule 5 (0.065"±)
- Inside Diameter: 2.245" (Approx.)
- Fitting Shape: 90°
- Centerline Radius: 2.000"
- Connection Type: Butt-Weld

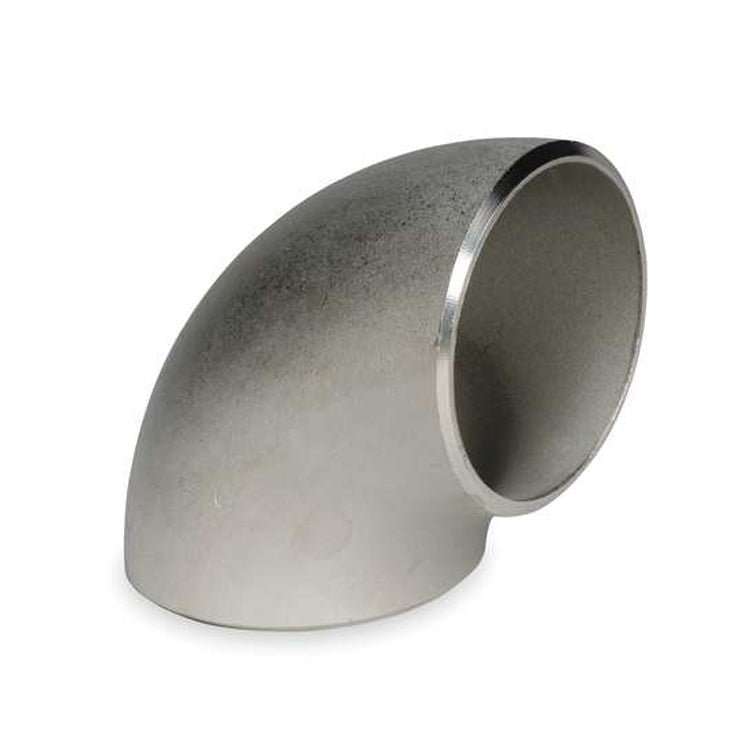

2" Schedule 10 Short Radius 90° Elbow 321 Stainless
51051The Fabricator's Choice for High Horsepower Turbo Manifold Builds!
The Ace Race Parts brand of Schedule 10 Short Radius 90° Weld Els are available in 321 Stainless! Our 321 Stainless Weld Els offer superior corrosion resistance in high temperature applications — especially applications that will see extended periods of wide open throttle (eg: a track car) or will see repeated high heat cycling (eg: a drag car that sees significant cooling between passes). With a slight addition of Titanium to stabilize the alloy at high temperatures, 321 Stainless is an excellent choice for turbo manifolds that will be exposed to high levels of heat over a prolonged period of time.
FEATURES
- Tight Radius 90° Bend Angle
- 321 Stainless Steel
- Allows for a Smooth, Unobstructed Flow of Exhaust Gas
- Durable Enough for a Wide Variety of Turbo Manifold Applications
- Capable of Withstanding 1,600°F
- 37.5° Beveled Ends
- Manufactured to ASTM A403/ASME B16.9 specifications
DETAILS

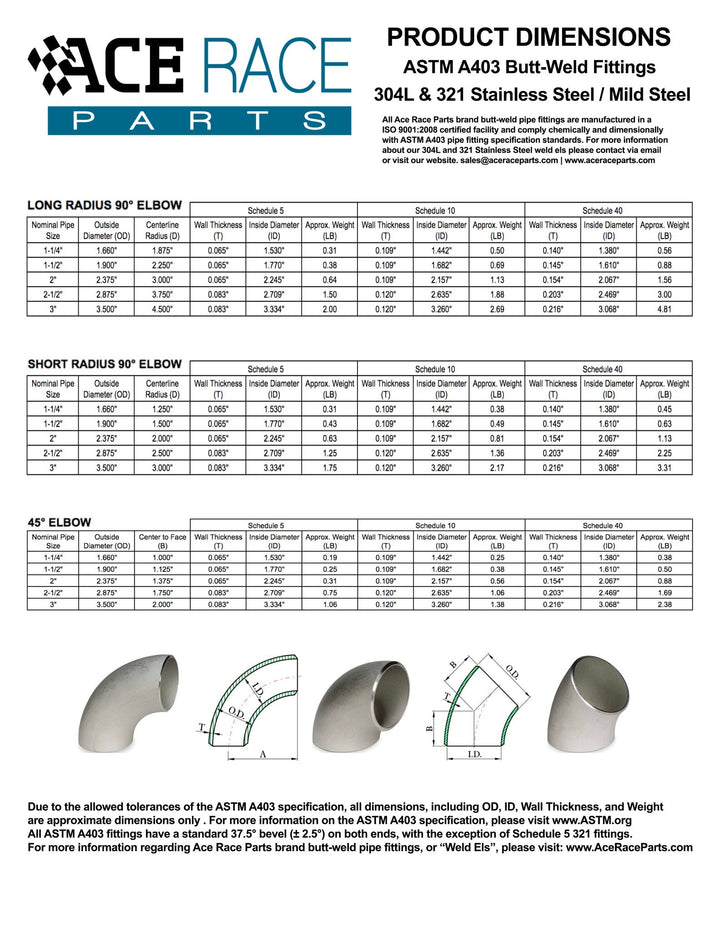

Dimensional Disclaimer: Due to the allowed tolerances of pipe size material (spec: ASTM A403), all dimensions, including OD, ID, Wall Thickness, and Weight are approximate dimensions only. We make no guarantees that any of the dimensions provided for pipe or pipe fittings are exact measurements.
Note: All ASTM A403 pipe fittings, except for Schedule 5 fittings, have a standard 37.5° bevel (±2.5°) on both ends. All straight lengths of pipe have a plain end with no bevel.
Pair with our 321 Stainless Pipe
