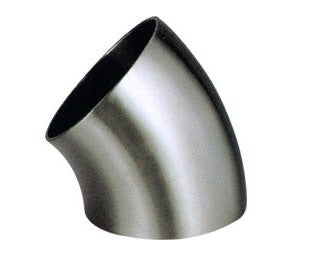

3.500" 16ga 45° Mandrel Bend 321 Stainless
212-350-BTRUSTED BY THE INDUSTRY'S TOP FABRICATORS AND MANUFACTURERS!
The Ace Race Parts brand of 45° 321 Stainless Mandrel Bends is the fabricator's and manufacturer's choice for fabricating downpipes, dump tubes, exhaust systems, headers, teardrop exits, and other custom components. Our mandrel elbows offer a consistent, high quality welding experience with virtually no need for surface preparation prior to welding.
FEATURES
- Fabricate Downpipes, Dump Tubes, Headers, Teardrops, and more!
- Precision Bent 321 Stainless Steel
- Polished Finish
- Virtually No Need for Surface Preparation Prior to Welding

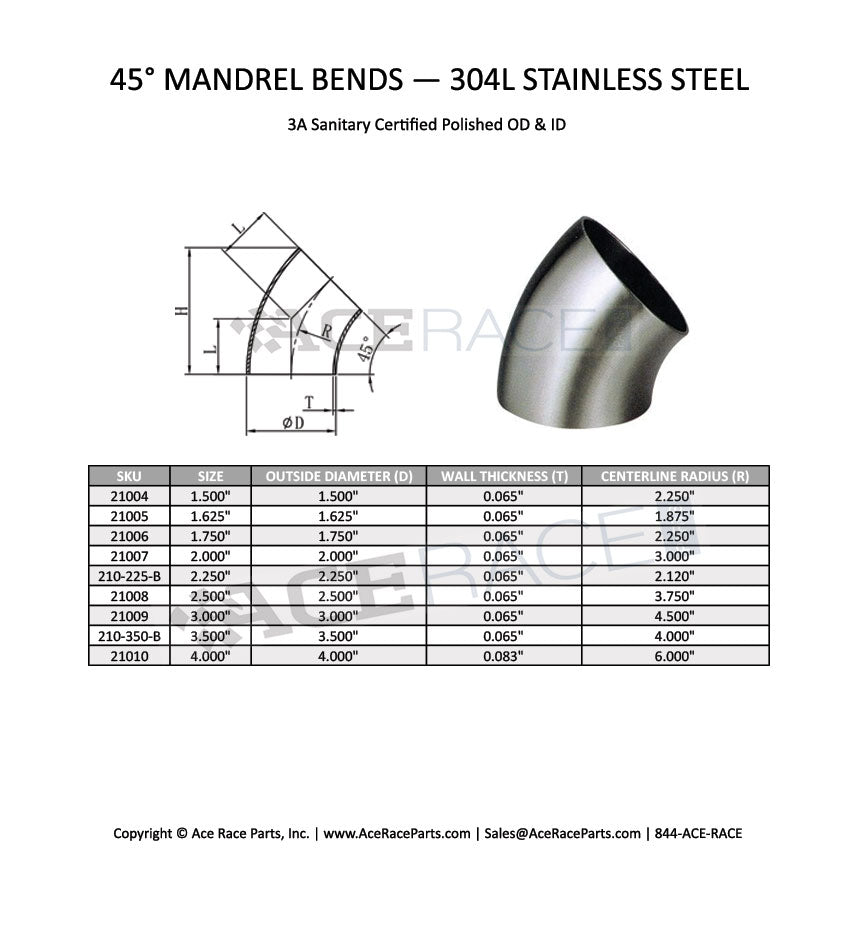

DETAILS
- Outside Diameter: 3.500"
- Wall Thickness: 16ga (0.065±)
- Inside Diameter: 3.370"
- Bend Angle: 45°
- Centerline Radius: 4.000"
- Leg/Tangent Length: None
- Finish: Polished OD
Dimensional Disclaimer: Due to the allowable tolerances of tube size material all dimensions are approximate only. We make no guarantees that the OD, ID, or Wall Thickness are exact dimensions.
