- Nominal Size: 2" (2.375")
- Wall Thickness: Schedule 10 (0.109"±)
- Inside Diameter: 2.157" (Approx.)
- Fitting Shape: 90°
- Centerline Radius: 3.000"
- Connection Type: Butt-Weld

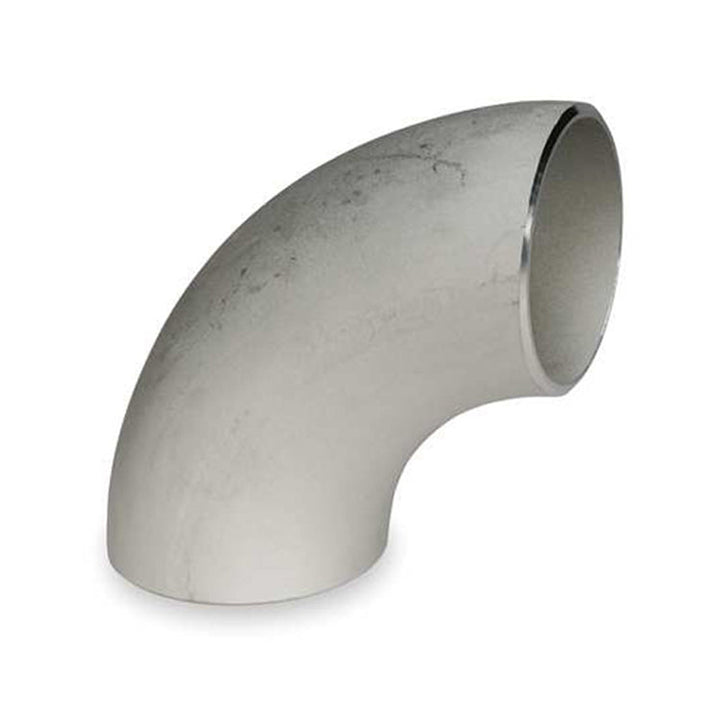

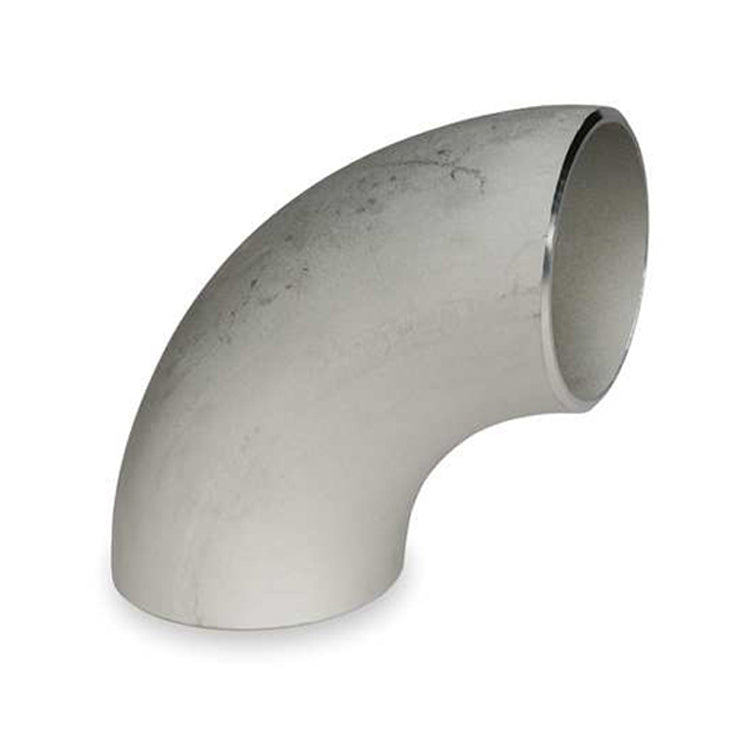

2" Schedule 10 Long Radius 90° Elbow 304 Stainless
51004The Fabricator's Choice for High Horsepower Turbo Manifold Builds!
The Ace Race Parts brand of 2" Schedule 10 pipe bends are the perfect solution for large turbo manifold applications. Our stainless weld els can withstand the punishment, vibration, and heat of a high horsepower street, drag, or track car.
FEATURES
- 304 Stainless Steel
- Allows for a Smooth, Unobstructed Flow of Exhaust Gas
- Durable Enough for a Wide Variety of Turbo Manifold Applications
- Capable of Withstanding 1,600°F
- 37.5° Beveled Ends
- Manufactured to ASTM A403/ASME B16.9 specifications
- One of the Most Commonly Used Sizes in Turbo LS Builds!
- Compatible with 2.375" V-Band Assemblies
DETAILS

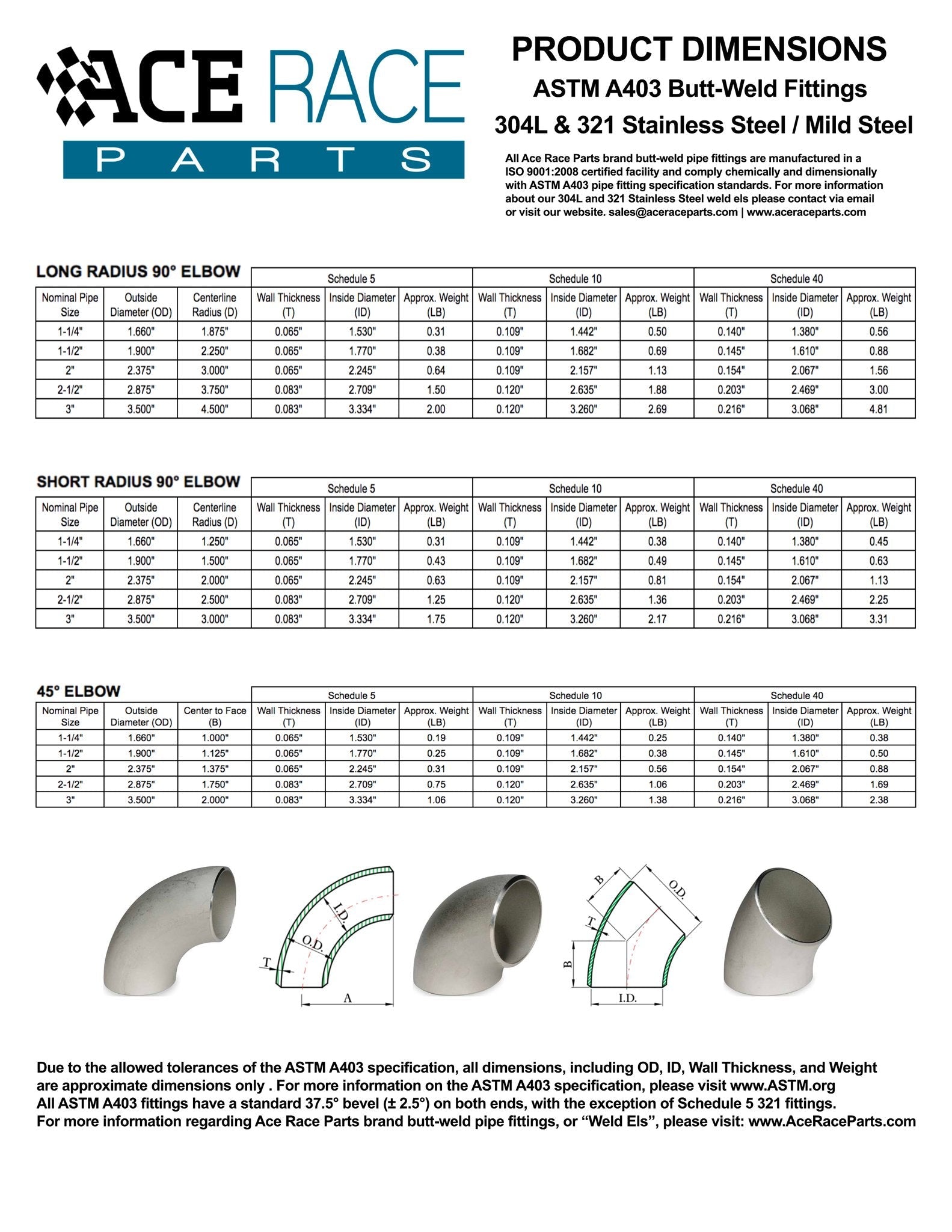

Dimensional Disclaimer: Due to the allowed tolerances of pipe size material (spec: ASTM A403), all dimensions, including OD, ID, Wall Thickness, and Weight are approximate dimensions only. We make no guarantees that any of the dimensions provided for pipe or pipe fittings are exact measurements.
Note: All ASTM A403 pipe fittings, except for Schedule 5 fittings, have a standard 37.5° bevel (±2.5°) on both ends. All straight lengths of pipe have a plain end with no bevel.
Pair with our 304L Stainless Pipe
