- Nominal Size: 1-1/4" (1.660")
- Wall Thickness: Schedule 40 (0.140"±)
- Inside Diameter: 1.380" (Approx.)
- Fitting Shape: Tee
- Connection Type: Butt-Weld

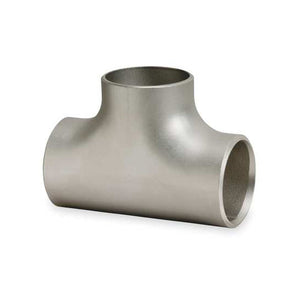

1-1/4" Schedule 40 Tee 304 Stainless
52008The Fabricator's Choice for Turbo Log Manifold Builds!
The Ace Race Parts brand of Schedule 40 1-1/4" pipe size Tees have a thicker wall thickness and a smaller ID than comparable Schedule 10 Elbows and are the perfect solution for small and large turbo manifold applications. Our stainless tee fittings can withstand the punishment, vibration, and heat of a high horsepower street, drag, or track car.
FEATURES
- Equal Length Tee Configuration
- 304 Stainless Steel
- Allows for a Smooth, Unobstructed Flow of Exhaust Gas
- Durable Enough for a Wide Variety of Turbo Manifold Applications
- Capable of Withstanding 1,600°F
- 37.5° Beveled Ends
- Manufactured to ASTM A403/ASME B16.9 specifications
- An Excellent Choice for Log Manifolds
DETAILS
Dimensional Disclaimer: Due to the allowed tolerances of pipe size material (spec: ASTM A403), all dimensions, including OD, ID, Wall Thickness, and Weight are approximate dimensions only. We make no guarantees that any of the dimensions provided for pipe or pipe fittings are exact measurements.
Note: All ASTM A403 pipe fittings, except for Schedule 5 fittings, have a standard 37.5° bevel (±2.5°) on both ends. All straight lengths of pipe have a plain end with no bevel.
Pair with our 304L Stainless Pipe
