- Nominal Size: 1-1/2" (1.900")
- Nominal Size: 1-1/4" (1.660")
- Wall Thickness: Schedule 40 (0.145"±)
- Fitting Shape: Reducer, Concentric
- Connection Type: Butt-Weld

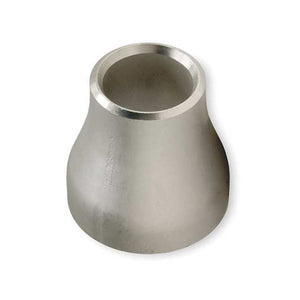

1-1/2" x 1-1/4" Schedule 40 Concentric Reducer 304 Stainless
53009A Smooth, Free-Flowing Way to Step Up or Down in Size!
The Ace Race Parts brand of Schedule 40 pipe size Reducers are the perfect solution for small and large turbo manifold applications. Our stainless concentric reducers can withstand the punishment, vibration, and heat of a high horsepower street, drag, or track car.
FEATURES
- Smooth, Concentric Style Transition
- Thicker Than Schedule 10
- 304 Stainless Steel
- Allows for a Smooth, Unobstructed Flow of Exhaust Gas
- Durable Enough for a Wide Variety of Turbo Manifold Applications
- Capable of Withstanding 1,600°F
- 37.5° Beveled Ends
- Manufactured to ASTM A403/ASME B16.9 specifications
DETAILS
Dimensional Disclaimer: Due to the allowed tolerances of pipe size material (spec: ASTM A403), all dimensions, including OD, ID, Wall Thickness, and Weight are approximate dimensions only. We make no guarantees that any of the dimensions provided for pipe or pipe fittings are exact measurements.
Note: All ASTM A403 pipe fittings, except for Schedule 5 fittings, have a standard 37.5° bevel (±2.5°) on both ends. All straight lengths of pipe have a plain end with no bevel.
Pair with our 304L Stainless Pipe
