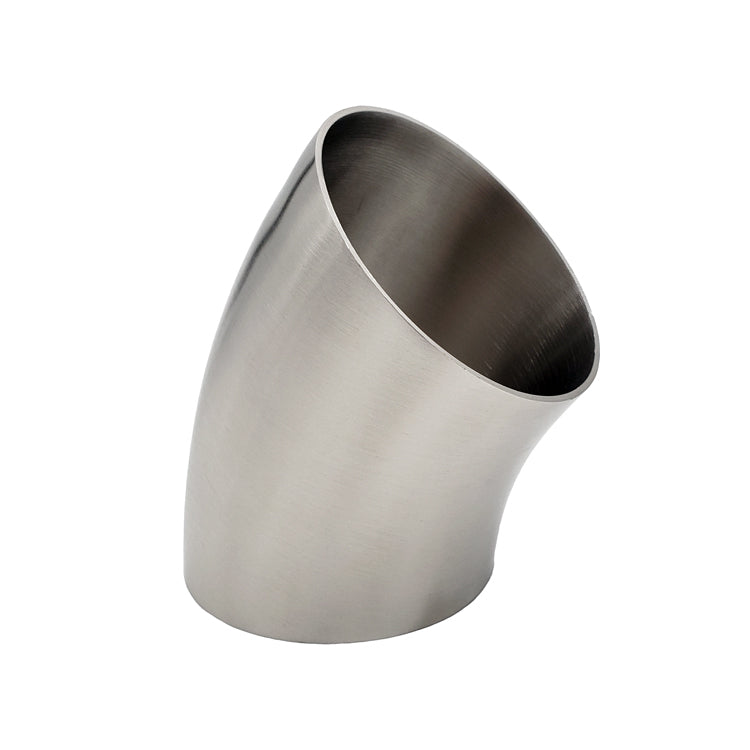

1.750" 16ga 45° Mandrel Bend - (2.250" CLR) - Brushed Finish - 304 Stainless
1.750" 16ga 45° Mandrel Bend - (2.250" CLR) - Brushed Finish - 304 Stainless

1.750" 16ga 45° Mandrel Bend - (2.250" CLR) - Brushed Finish - 304 Stainless

21006
Only 174 left!
TRUSTED BY THE INDUSTRY'S TOP FABRICATORS AND MANUFACTURERS!

The Ace Race Parts brand of sanitary style 45° 304 Stainless Mandrel Bends is the fabricator's and manufacturer's choice for fabricating downpipes, dump tubes, exhaust systems, headers, teardrop exits, and other custom components. Our mandrel elbows offer a consistent, high quality welding experience with virtually no need for surface preparation prior to welding.

FEATURES

  • Fabricate Downpipes, Dump Tubes, Headers, Teardrops, and more!
  • Precision Bent 304 Stainless Steel
  • Sanitary Polished Finish on the OD and ID
  • Available in a Wide Range of Centerline Radius Options
  • Virtually No Need for Surface Preparation Prior to Welding
DETAILS
  • Outside Diameter: 1.750"
  • Wall Thickness: 16ga (0.065"±)
  • Inside Diameter: 1.620"
  • Bend Angle: 45°
  • Centerline Radius (CLR): 2.250"
  • Leg/Tangent Length: None
  • Finish: Brushed Finish (OD & ID)
Dimensional Disclaimer: Due to the allowable tolerances of tube size material all dimensions are approximate only. We make no guarantees that the OD, ID, or Wall Thickness are exact dimensions.
Tube vs Pipe Guide
